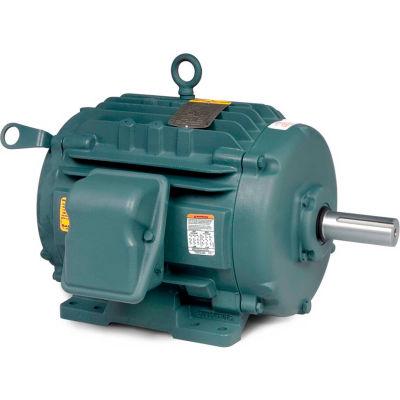

Baldor-Reliance Motor CTM2276T, 7.5HP, 1160RPM, 3PH, 60HZ, 254T, 0756M, TEAO, F

Baldor-Reliance Motor CTM2276T, 7.5HP, 1160RPM, 3PH, 60HZ, 254T, 0756M, TEAO, F

Item #: WBB388424

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,785.00 up to 20% OFF

Price: $1,426.00

$237.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,426.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 7.5HP,1160RPM,3PH,60HZ,254T,0756M,TEAO,F

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCTM2276T
  • HORSEPOWER7 1/2
  • MOTOR RPM 60Hz1160
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME254T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS2S-1W-VT
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1160
  • MOUNTINGRigid
  • FULL LOAD AMPS24.0/21.8/10.9
  • SHAFT DIAMETER1.625
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6309
  • OPPOSITE END BEARING SIZE6206
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH22.16
  • is_motorYes
  • LENGTH INCHES28.5
  • WIDTH INCHES18
  • HEIGHT INCHES19
  • WEIGHT LBS179
  • RPM RANGE1101-1200
  • SHAFT DIAMETER INCHES2.374
  • SHAFT LENGTH INCHES2.374
  • FL EFFICIENCY89.5
  • DESIGN CODEA
  • OPPOSITE END BEARING6206
  • FL AMPS24-21.8/10.9
  • POLES6
  • FRAME SIZE254T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • need the warranty info for this motor. just installed 30 days ago has winding to winding short.please email me the info thanks,

    Question Asked By: jim alligood, April 24, 2012

    Answer This Question

    Question Answered By:

    • Product Expert, April 24, 2012

      For Warranty information on the motor, please contact our Customer Service Team at 1.888.628.3466.
