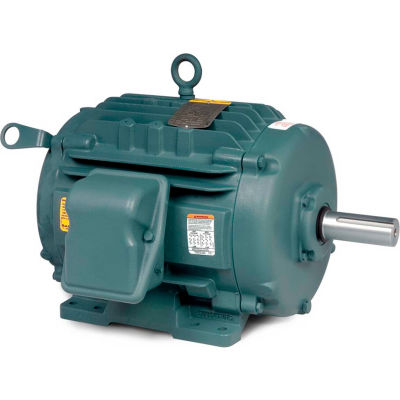

Baldor-Reliance Motor CTM2334T, 20HP, 1760RPM, 3PH, 60HZ, 256T, 0760M, TEAO, F1

Baldor-Reliance Motor CTM2334T, 20HP, 1760RPM, 3PH, 60HZ, 256T, 0760M, TEAO, F1

Item #: WBB388427

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,430.00 up to 20% OFF

Price: $1,941.00

$323.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,941.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 20HP,1760RPM,3PH,60HZ,256T,0760M,TEAO,F1

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCTM2334T
  • HORSEPOWER20
  • MOTOR RPM 60Hz1760
  • VOLTAGE230/460
  • PHASE3
  • FRAME256T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1760
  • MOUNTINGRigid
  • FULL LOAD AMPS54.0/50.0/25.0
  • SHAFT DIAMETER1.625
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6311
  • OPPOSITE END BEARING SIZE6206
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES28.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH23.91
  • is_motorYes
  • LENGTH INCHES28.5
  • WIDTH INCHES18
  • HEIGHT INCHES18
  • WEIGHT LBS245
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.625
  • SHAFT LENGTH INCHES1.625
  • FL EFFICIENCY91
  • DESIGN CODEA
  • OPPOSITE END BEARING6206
  • FL AMPS50/25
  • POLES4
  • FRAME SIZE256T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
