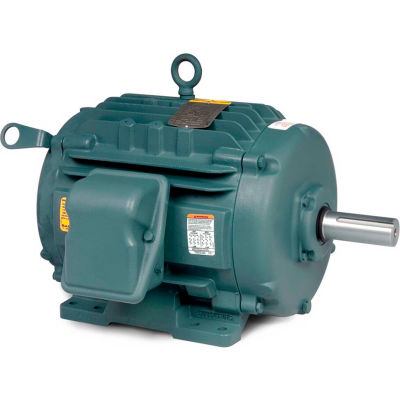

Baldor-Reliance Motor CTM3768T, 5HP, 1155RPM, 3PH, 60HZ, 215T, 0736M, TEAO, F1

Baldor-Reliance Motor CTM3768T, 5HP, 1155RPM, 3PH, 60HZ, 215T, 0736M, TEAO, F1

Item #: WBB388517

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,463.00 up to 20% OFF

Price: $1,169.00

$194.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,169.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1155RPM,3PH,60HZ,215T,0736M,TEAO,F1

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCTM3768T
  • HORSEPOWER5
  • MOTOR RPM 60Hz1155
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME215T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1155
  • MOUNTINGRigid
  • FULL LOAD AMPS7.5/16.3/15.0
  • SHAFT DIAMETER1.375
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6203
  • OPPOSITE END BEARING SIZE6206
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES21.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH19.54
  • is_motorYes
  • LENGTH INCHES28.5
  • WIDTH INCHES16
  • HEIGHT INCHES16
  • WEIGHT LBS206
  • RPM RANGE1101-1200
  • SHAFT DIAMETER INCHES1.125
  • SHAFT LENGTH INCHES1.125
  • FL EFFICIENCY87.5
  • DESIGN CODEA
  • OPPOSITE END BEARING6206
  • FL AMPS16.3-15/7.5
  • POLES6
  • FRAME SIZE215T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
