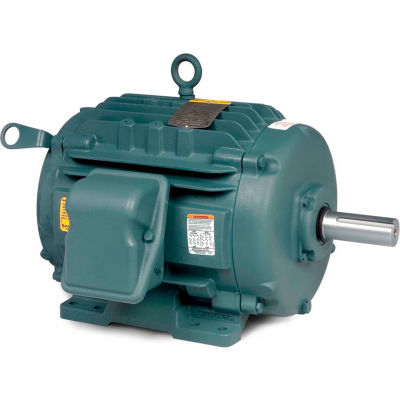

Baldor-Reliance Motor CTM3774T, 10HP, 1760RPM, 3PH, 60HZ, 215T, 0733M, TEAO, F1

Baldor-Reliance Motor CTM3774T, 10HP, 1760RPM, 3PH, 60HZ, 215T, 0733M, TEAO, F1

Item #: WBB388519

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,641.00 up to 20% OFF

Price: $1,311.00

$218.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,311.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 10HP,1760RPM,3PH,60HZ,215T,0733M,TEAO,F1

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCTM3774T
  • HORSEPOWER10
  • MOTOR RPM 60Hz1760
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME215T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1760
  • MOUNTINGRigid
  • FULL LOAD AMPS27.5/26.0/13.0
  • SHAFT DIAMETER1.375
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6309
  • OPPOSITE END BEARING SIZE6206
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES28.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH19.54
  • is_motorYes
  • LENGTH INCHES28.5
  • WIDTH INCHES18
  • HEIGHT INCHES18
  • WEIGHT LBS170
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.375
  • SHAFT LENGTH INCHES1.375
  • FL EFFICIENCY89.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6206
  • FL AMPS27.5-26/13
  • POLES4
  • FRAME SIZE215T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
