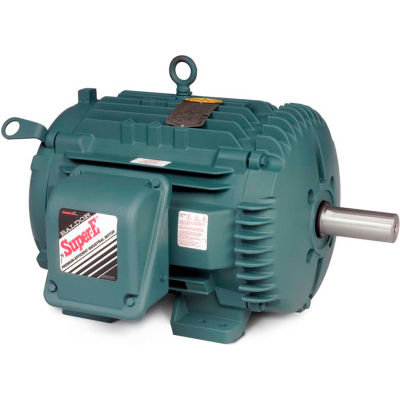

Baldor-Reliance Motor ECTM2334T, 20HP, 1765RPM, 3PH, 60HZ, 256T, 0952M, TEAO, F1

Baldor-Reliance Motor ECTM2334T, 20HP, 1765RPM, 3PH, 60HZ, 256T, 0952M, TEAO, F1

Item #: WBB390283

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 20HP,1765RPM,3PH,60HZ,256T,0952M,TEAO,F1

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERECTM2334T
  • HORSEPOWER20
  • MOTOR RPM 60Hz1765
  • VOLTAGE230/460
  • PHASE3
  • FRAME256T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1765
  • MOUNTINGRigid
  • FULL LOAD AMPS52.0/48.0/24.0
  • SHAFT DIAMETER1.625
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6307
  • OPPOSITE END BEARING SIZE6208
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES0.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH23
  • is_motorYes
  • LENGTH INCHES0.5
  • WIDTH INCHES0.5
  • HEIGHT INCHES0.5
  • WEIGHT LBS293
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.625
  • FL EFFICIENCY93
  • DESIGN CODEB
  • OPPOSITE END BEARING6208
  • FL AMPS48/24
  • POLES4
  • FRAME SIZE256T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
