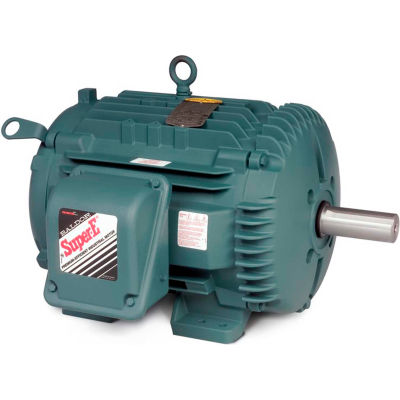

Baldor-Reliance Motor ECTM3665T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 0640M, TEAO, F1

Baldor-Reliance Motor ECTM3665T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 0640M, TEAO, F1

Item #: WBB390284

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,092.00 up to 20% OFF

Price: $873.00

$145.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $873.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1750RPM,3PH,60HZ,184T,0640M,TEAO,F1

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERECTM3665T
  • HORSEPOWER5
  • MOTOR RPM 60Hz1750
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME184T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1750
  • MOUNTINGRigid
  • FULL LOAD AMPS6.6/14.0/13.2
  • SHAFT DIAMETER1.125
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6206
  • OPPOSITE END BEARING SIZE6205
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES0.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH13.68
  • is_motorYes
  • LENGTH INCHES21.5
  • WIDTH INCHES0.5
  • HEIGHT INCHES0.5
  • WEIGHT LBS108
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.625
  • FL EFFICIENCY89.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6205
  • FL AMPS14-13.2/6.6
  • POLES4
  • FRAME SIZE184T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
