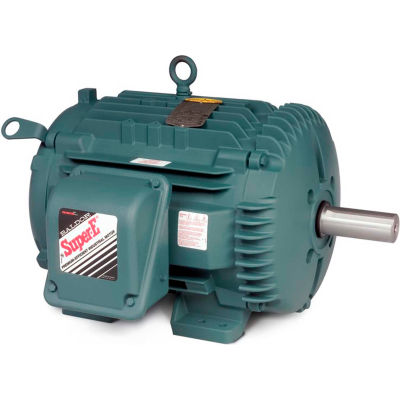

Baldor-Reliance Motor ECTM4110T, 40 AIR OVERHP, 1775RPM, 3PH, 60HZ, 324T, 1254

Baldor-Reliance Motor ECTM4110T, 40 AIR OVERHP, 1775RPM, 3PH, 60HZ, 324T, 1254

Item #: WBB390380

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,531.00 up to 20% OFF

Price: $4,417.00

$736.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,417.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 40 AIR OVERHP,1775RPM,3PH,60HZ,324T,1254

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERECTM4110T
  • HORSEPOWER40
  • MOTOR RPM 60Hz1775
  • VOLTAGE230/460
  • PHASE3
  • FRAME324T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1775
  • MOUNTINGRigid
  • FULL LOAD AMPS96.0/48.0/102.0
  • SHAFT DIAMETER2.125
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6203
  • OPPOSITE END BEARING SIZE6311
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES31
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH28.38
  • is_motorYes
  • LENGTH INCHES33.25
  • WIDTH INCHES23.75
  • HEIGHT INCHES23.75
  • WEIGHT LBS553
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.875
  • FL EFFICIENCY94.1
  • DESIGN CODEB
  • OPPOSITE END BEARING6311
  • FL AMPS96/48
  • POLES4
  • FRAME SIZE324T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
