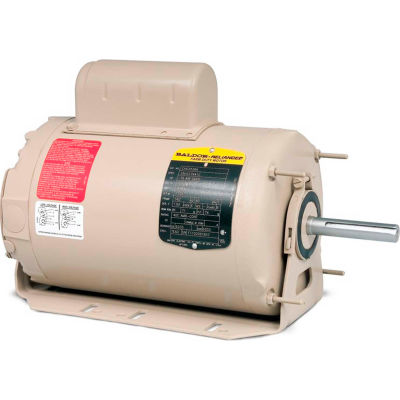

Baldor-Reliance Motor CHC3526A, .5 AIR OVERHP, 825RPM, 1PH, 60HZ, 56Z, 3535C

Baldor-Reliance Motor CHC3526A, .5 AIR OVERHP, 825RPM, 1PH, 60HZ, 56Z, 3535C

Item #: WBB387958

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Baldor-Reliance Single Phase HVAC Motor

This TEAO (Totally Enclosed Air Over), 0.5HP, 825RPM, 115/230V unit has rugged steel frame, double sealed ball bearings, corrosion resistant expoxy finish, 1 extended thru bolts and permanent spit capacitor.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCHC3526A
  • HORSEPOWER1/2
  • MOTOR RPM 60Hz825
  • VOLTAGE115/230
  • PHASE1
  • FRAME56Z
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONAutomatic
  • RATED RPM825
  • MOUNTINGResilient
  • FULL LOAD AMPS9.2/4.6
  • SHAFT DIAMETER0.625
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6203
  • OPPOSITE END BEARING SIZE6203
  • INSULATION CLASSF
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES16.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH14.42
  • is_motorYes
  • LENGTH INCHES16.5
  • WIDTH INCHES11.75
  • HEIGHT INCHES11.75
  • WEIGHT LBS50
  • RPM RANGE0-1000
  • SHAFT DIAMETER INCHES0.625
  • SHAFT LENGTH INCHES0.625
  • FL EFFICIENCY50
  • DESIGN CODE-
  • FL AMPS9.2/4.6
  • FRAME SIZE56Z
  • POLES8
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
