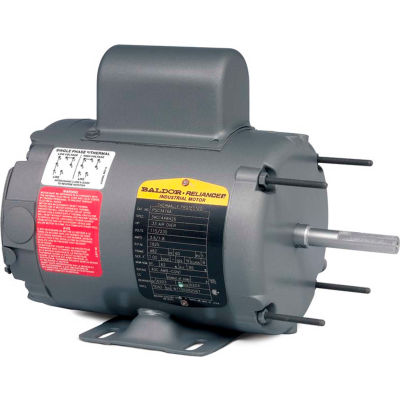

Baldor-Reliance Motor PSC3524A, .5HP, 1625RPM, 1PH, 60HZ, 48Z, 3418C, TEAO, F1

Baldor-Reliance Motor PSC3524A, .5HP, 1625RPM, 1PH, 60HZ, 48Z, 3418C, TEAO, F1

Item #: WBB390651

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$429.00 up to 20% OFF

Price: $342.95

Save $17.15 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Single Phase HVAC Motor

This TEAO (Totally Enclosed Air Over), 0.5HP, 1625RPM, 115/230V unit has rugged steel frame, double sealed ball bearings, corrosion resistant expoxy finish, 1 extended thru bolts and permanent spit capacitor.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERPSC3524A
  • HORSEPOWER1/2
  • MOTOR RPM 60Hz1625
  • VOLTAGE115/230
  • PHASE1
  • FRAME48Z
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONAutomatic
  • RATED RPM1625
  • MOUNTINGRigid
  • FULL LOAD AMPS6.0/3.0
  • SHAFT DIAMETER0.5
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6203
  • OPPOSITE END BEARING SIZE6203
  • INSULATION CLASSB
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES18.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH11.96
  • is_motorYes
  • LENGTH INCHES14
  • WIDTH INCHES11.125
  • HEIGHT INCHES10
  • WEIGHT LBS48
  • RPM RANGE1501-1700
  • SHAFT DIAMETER INCHES0.875
  • FL EFFICIENCY65
  • DESIGN CODE-
  • FL AMPS6/3
  • FRAME SIZE145TY
  • POLES4
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
