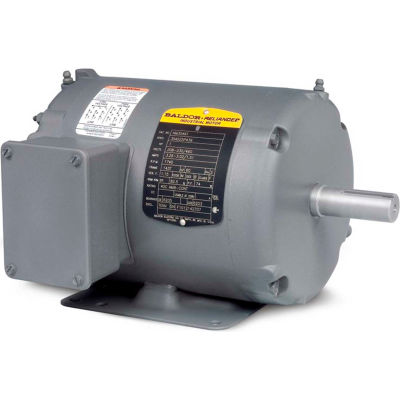

Baldor-Reliance Motor AOM25904T, 5 AIR OVERHP, 870RPM, 3PH, 60HZ, 254T, 3936M

Baldor-Reliance Motor AOM25904T, 5 AIR OVERHP, 870RPM, 3PH, 60HZ, 254T, 3936M

Item #: WBB388728

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,816.00 up to 20% OFF

Price: $2,249.00

$374.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,249.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5 AIR OVERHP,870RPM,3PH,60HZ,254T,3936M

Features:
  • Locked drive end bearing construction
  • Bearings sized for larger overhung loads for fan on shaft applications
  • Leads 36
Typical Applications:
Motors are designed for In the Airstream and fan on shaft applications.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERAOM25904T
  • HORSEPOWER5
  • MOTOR RPM 60Hz870
  • VOLTAGE230/460
  • PHASE3
  • FRAME254T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM870
  • MOUNTINGRigid
  • FULL LOAD AMPS9.2/18.6/18.4
  • SHAFT DIAMETER1.625
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6309
  • OPPOSITE END BEARING SIZE6208
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES0.5
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH19.63
  • is_motorYes
  • LENGTH INCHES0.5
  • WIDTH INCHES0.5
  • HEIGHT INCHES0.5
  • WEIGHT LBS208
  • RPM RANGE0-1000
  • SHAFT DIAMETER INCHES1.625
  • SHAFT LENGTH INCHES1.625
  • FL EFFICIENCY82.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6208
  • FL AMPS17.8/8.9
  • POLES8
  • FRAME SIZE254T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
