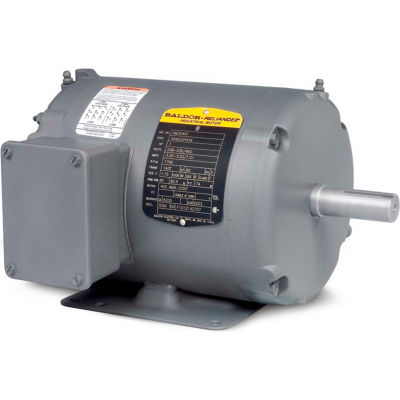

Baldor-Reliance Motor AOM3704T, 3HP, 1140RPM, 3PH, 60HZ, 213T, 3723M, TEAO, F1

Baldor-Reliance Motor AOM3704T, 3HP, 1140RPM, 3PH, 60HZ, 213T, 3723M, TEAO, F1

Item #: WBB388558

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$848.00 up to 20% OFF

Price: $678.00

$113.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $678.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 3HP,1140RPM,3PH,60HZ,213T,3723M,TEAO,F1

Features:
  • Locked drive end bearing construction
  • Bearings sized for larger overhung loads for fan on shaft applications
  • Leads 36
Typical Applications:
Motors are designed for In the Airstream and fan on shaft applications.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERAOM3704T
  • HORSEPOWER3
  • MOTOR RPM 60Hz1155
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME213T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1155
  • MOUNTINGRigid
  • FULL LOAD AMPS9.6/4.8/10.4
  • SHAFT DIAMETER1.375
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6205
  • OPPOSITE END BEARING SIZE6206
  • INSULATION CLASSF
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES21.5
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH16.32
  • is_motorYes
  • LENGTH INCHES21.5
  • WIDTH INCHES16
  • HEIGHT INCHES16
  • WEIGHT LBS92
  • RPM RANGE1101-1200
  • SHAFT DIAMETER INCHES1.375
  • SHAFT LENGTH INCHES1.375
  • FL EFFICIENCY84
  • DESIGN CODEB
  • OPPOSITE END BEARING6206
  • FL AMPS10.4-9.6/4.8
  • FRAME SIZE213T
  • POLES6
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
