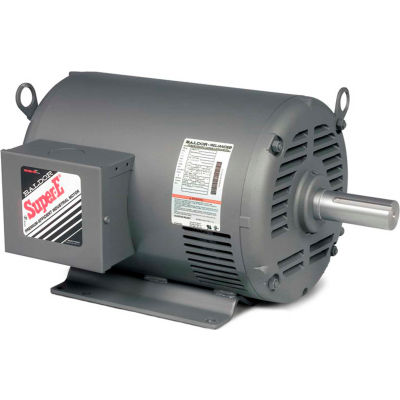

Baldor-Reliance Motor EHM2515T, 20HP, 1765RPM, 3PH, 60HZ, 256T, 3944M, OPSB, F1

Baldor-Reliance Motor EHM2515T, 20HP, 1765RPM, 3PH, 60HZ, 256T, 3944M, OPSB, F1

Item #: WBB390330

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,303.00 up to 29% OFF

Price: $1,631.00

$271.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,631.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 20HP,1765RPM,3PH,60HZ,256T,3944M,OPSB,F1

Features:
  • Heavy gauge steel frame construction
  • Ball bearings
  • Grease reduced vibration
  • Suitable for mounting in any position
  • EHM models meet NEMA Premium® efficiency and inverter-ready
  • 3 year warranty
  • HM models meet EPAct efficiencies
Typical Applications:
Heating, ventilation and air conditioning fans and blowers

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBEREHM2515T
  • HORSEPOWER20
  • MOTOR RPM 60Hz1765
  • VOLTAGE230/460
  • PHASE3
  • FRAME256T
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1765
  • MOUNTINGRigid
  • FULL LOAD AMPS52.0/48.0/24.0
  • SHAFT DIAMETER1.625
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6309
  • OPPOSITE END BEARING SIZE6208
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES27
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH23.19
  • is_motorYes
  • LENGTH INCHES0.5
  • WIDTH INCHES19.5
  • HEIGHT INCHES19.5
  • WEIGHT LBS250
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.625
  • FL EFFICIENCY93
  • DESIGN CODEB
  • OPPOSITE END BEARING6208
  • FL AMPS47/23.5
  • POLES4
  • FRAME SIZE256T
  • DRIVE END FLANGEStandard
  • ENCLOSUREOPSB
