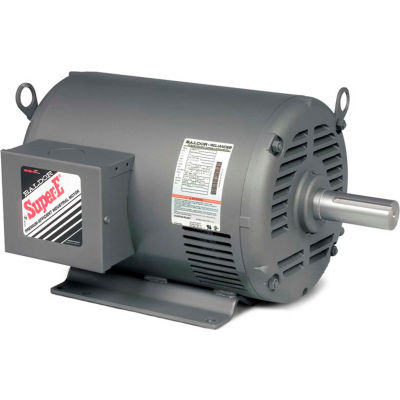

Baldor-Reliance Motor EHM2535T, 30HP, 1770RPM, 3PH, 60HZ, 286T, 4052M, OPSB, F1

Baldor-Reliance Motor EHM2535T, 30HP, 1770RPM, 3PH, 60HZ, 286T, 4052M, OPSB, F1

Item #: WBB390334

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,063.00 up to 29% OFF

Price: $2,167.00

$361.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,167.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 30HP,1770RPM,3PH,60HZ,286T,4052M,OPSB,F1

Features:
  • Heavy gauge steel frame construction
  • Ball bearings
  • Grease reduced vibration
  • Suitable for mounting in any position
  • EHM models meet NEMA Premium® efficiency and inverter-ready
  • 3 year warranty
  • HM models meet EPAct efficiencies
Typical Applications:
Heating, ventilation and air conditioning fans and blowers

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBEREHM2535T
  • HORSEPOWER30
  • MOTOR RPM 60Hz1770
  • VOLTAGE230/460
  • PHASE3
  • FRAME286T
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1770
  • MOUNTINGRigid
  • FULL LOAD AMPS76.0/72.0/36.0
  • SHAFT DIAMETER1.875
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6309
  • OPPOSITE END BEARING SIZE6309
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES31
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH26.06
  • is_motorYes
  • LENGTH INCHES0.5
  • WIDTH INCHES23.75
  • HEIGHT INCHES23.75
  • WEIGHT LBS378
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.875
  • FL EFFICIENCY94.1
  • DESIGN CODEB
  • OPPOSITE END BEARING6309
  • FL AMPS70/35
  • POLES4
  • FRAME SIZE286T
  • DRIVE END FLANGEStandard
  • ENCLOSUREOPSB
