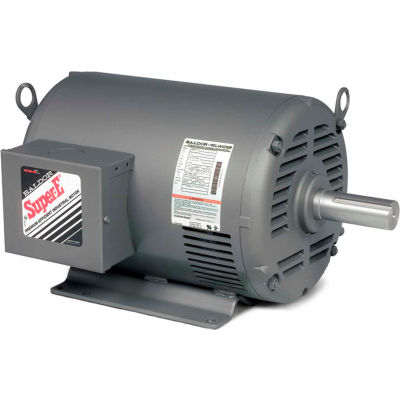

Baldor-Reliance Motor EHM2551T, 75HP, 1775RPM, 3PH, 60HZ, 365T, 4462M, OPSB, F1

Baldor-Reliance Motor EHM2551T, 75HP, 1775RPM, 3PH, 60HZ, 365T, 4462M, OPSB, F1

Item #: WBB390424

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$6,787.00 up to 29% OFF

Price: $4,795.00

$799.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,795.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 75HP,1775RPM,3PH,60HZ,365T,4462M,OPSB,F1

Features:
  • Heavy gauge steel frame construction
  • Ball bearings
  • Grease reduced vibration
  • Suitable for mounting in any position
  • EHM models meet NEMA Premium® efficiency and inverter-ready
  • 3 year warranty
  • HM models meet EPAct efficiencies
Typical Applications:
Heating, ventilation and air conditioning fans and blowers

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBEREHM2551T
  • HORSEPOWER75
  • MOTOR RPM 60Hz1775
  • VOLTAGE230/460
  • PHASE3
  • FRAME365T
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1775
  • MOUNTINGRigid
  • FULL LOAD AMPS85.0/170.0
  • SHAFT DIAMETER2.375
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6313
  • OPPOSITE END BEARING SIZE6312
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES33.25
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH33.72
  • is_motorYes
  • LENGTH INCHES40.5
  • WIDTH INCHES25.88
  • HEIGHT INCHES25.88
  • WEIGHT LBS752
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES2.375
  • FL EFFICIENCY95
  • DESIGN CODEB
  • OPPOSITE END BEARING6312
  • FL AMPS170/85
  • POLES4
  • FRAME SIZE365T
  • DRIVE END FLANGEStandard
  • ENCLOSUREOPSB
