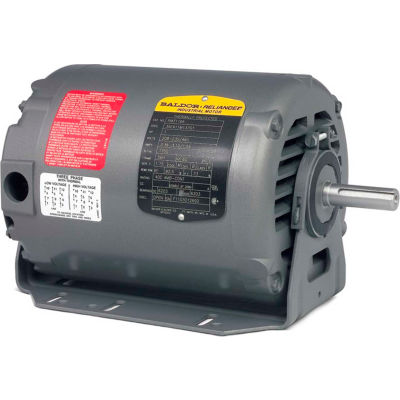

Baldor-Reliance Motor RM3116A, 1HP, 1725RPM, 3PH, 60HZ, 56/56H, 3516M, OPEN, F

Baldor-Reliance Motor RM3116A, 1HP, 1725RPM, 3PH, 60HZ, 56/56H, 3516M, OPEN, F

Item #: WBB390764

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1725RPM,3PH,60HZ,56/56H,3516M,OPEN,F

Features:
  • Heavy gauge steel base
  • Ball bearings
  • Automatic thermal overload
  • Suitable for mounting in any position
  • Dynamically balanced rotors for reduced vibration and quiet operation
Typical Applications:
Heating, ventilation and air conditioning blower and fan motors.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERRM3116A
  • HORSEPOWER1
  • MOTOR RPM 60Hz1750
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME56H
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONAutomatic
  • RATED RPM1750
  • MOUNTINGResilient
  • FULL LOAD AMPS4.0/3.9/2.0
  • SHAFT DIAMETER0.625
  • BEARING TYPEBall
  • INSULATION CLASSB
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES16.5
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH12.47
  • is_motorYes
  • LENGTH INCHES16.5
  • WIDTH INCHES11.125
  • HEIGHT INCHES8.75
  • WEIGHT LBS24
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES0.625
  • FL EFFICIENCY82.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6203
  • FL AMPS3.38-3.12/1.56
  • POLES4
  • FRAME SIZE56
  • DRIVE END FLANGEStandard
  • ENCLOSUREOPEN
