Baldor-Reliance HVAC Motor, EHM3554T, 3 PH, 1.5 HP, 208-230/460 V, 1760 RPM, TEFC, 145T Frame

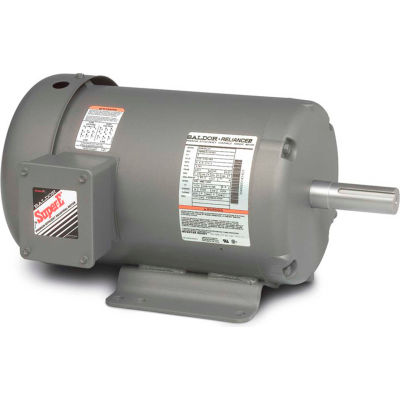

Actual product may differ from image shown

Baldor-Reliance HVAC Motor, EHM3554T, 3 PH, 1.5 HP, 208-230/460 V, 1760 RPM, TEFC, 145T Frame

Item #: WBB909963

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $453.95

Save $22.70 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance HVAC Motor, EHM3554T, 3 PH, 1.5 HP, 208-230/460 V, 1760 RPM, TEFC, 145T Frame

Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.

Features
  • Class F insulated motor with 1.15 service factor
  • Ball bearings with plugged grease passages
  • Heavy-gauge steel and cast-iron frames
  • Dynamically balanced rotors for reduced vibration and quiet operation
  • Suitable for mounting in any position
  • Meet or exceed NEMA Premium efficiencies
  • Inverter Ready with a 3 year warranty
Application(s)
  • Heating, ventilation and air conditioning blower and fan motors.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBEREHM3554T
  • HORSEPOWER1 1/2
  • MOTOR RPM 60Hz1760
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME145T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1760
  • MOUNTINGRigid
  • FULL LOAD AMPS4.5/4.4/2.2
  • SHAFT DIAMETER0.875
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6309
  • OPPOSITE END BEARING SIZE6203
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES19
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH13.29
  • is_motorYes
  • LENGTH INCHES19
  • WIDTH INCHES13.75
  • HEIGHT INCHES13.75
  • WEIGHT LBS44
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES0.875
  • FL EFFICIENCY86.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6203
  • FL AMPS4.5-4.4/2.2
  • FRAME SIZE145T
