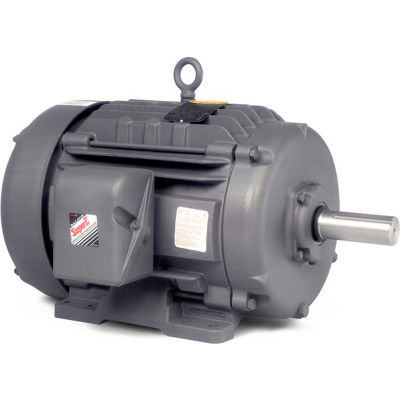

Baldor-Reliance HVAC Motor, EHM4110T, 3 PH, 40 HP, 208-230/460 V, 1775 RPM, TEFC, 324T Frame

Actual product may differ from image shown

Baldor-Reliance HVAC Motor, EHM4110T, 3 PH, 40 HP, 208-230/460 V, 1775 RPM, TEFC, 324T Frame

Item #: WBB910069

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,499.00

$583.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,499.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance HVAC Motor, EHM4110T, 3 PH, 40 HP, 208-230/460 V, 1775 RPM, TEFC, 324T Frame

Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.

Features
  • Class F insulated motor with 1.15 service factor
  • Ball bearings with plugged grease passages
  • Heavy-gauge steel and cast-iron frames
  • Dynamically balanced rotors for reduced vibration and quiet operation
  • Suitable for mounting in any position
  • Meet or exceed NEMA Premium efficiencies
  • Inverter Ready with a 3 year warranty
Application(s)
  • Heating, ventilation and air conditioning blower and fan motors.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBEREHM4110T
  • HORSEPOWER40
  • MOTOR RPM 60Hz1775
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME324T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1775
  • MOUNTINGRigid
  • FULL LOAD AMPS96.0/48.0/102.0
  • SHAFT DIAMETER2.125
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6312
  • OPPOSITE END BEARING SIZE6311
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES31
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH30.28
  • is_motorYes
  • LENGTH INCHES33.25
  • WIDTH INCHES23.75
  • HEIGHT INCHES23.75
  • WEIGHT LBS612
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.875
  • FL EFFICIENCY94.1
  • DESIGN CODEA
  • OPPOSITE END BEARING6311
  • FL AMPS102-96/48
  • FRAME SIZE324T
