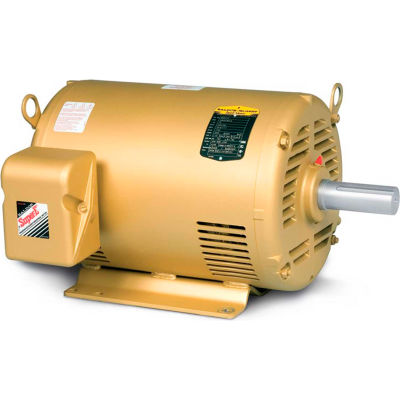

Baldor-Reliance HVAC Motor, EM3120T-G, 3 PH, 1.5 HP, 208-230/460 V, 3600 RPM, ODP, 143T Frame

Actual product may differ from image shown

Baldor-Reliance HVAC Motor, EM3120T-G, 3 PH, 1.5 HP, 208-230/460 V, 3600 RPM, ODP, 143T Frame

Item #: WBB909107

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $548.00

$91.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $548.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance HVAC Motor, EM3120T-G, 3 PH, 1.5 HP, 208-230/460 V, 3600 RPM, ODP, 143T Frame

Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.

Features
  • Class H insulated with AEGIS shaft grounding ring installed internally
  • Regreasable ball bearings
  • Dynamically balanced rotors for reduced vibration and quiet operation
  • Suitable for mounting in any position
  • Meet or exceed NEMA Premium efficiencies
  • Inverter Ready
  • 3 year warranty
Application(s)
  • Heating, ventilation and air conditioning blower and fan motors,pump motors, and other general purpose applications using an adjustable speed drive.


Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBEREM3120T-G
  • HORSEPOWER1 1/2
  • MOTOR RPM 60Hz3600
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME143T
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM3600
  • MOUNTINGRigid
  • FULL LOAD AMPS4.2/4.0/2.0
  • SHAFT DIAMETER0.875
  • BEARING TYPEBall
  • INSULATION CLASSH
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES33.25
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH11.12
  • is_motorYes
  • LENGTH INCHES16.5
  • WIDTH INCHES11.75
  • HEIGHT INCHES11.75
  • WEIGHT LBS541
  • RPM RANGE3001-3600
  • SHAFT DIAMETER INCHES2.125
  • FL EFFICIENCY84
  • FL AMPS2
  • FRAME SIZE364T
  • ENCLOSUREOPSB
