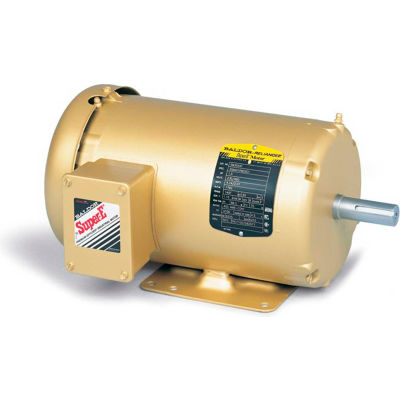

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Actual product may differ from image shown

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Item #: WBB910007

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.

Features
  • Class H insulated with AEGIS shaft grounding ring installed internally
  • Regreasable ball bearings
  • Dynamically balanced rotors for reduced vibration and quiet operation
  • Suitable for mounting in any position
  • Meet or exceed NEMA Premium efficiencies
  • Inverter Ready
  • 3 year warranty
Application(s)
  • Heating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBEREM3558T-G
  • HORSEPOWER2
  • MOTOR RPM 60Hz1755
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME145T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1755
  • MOUNTINGRigid
  • FULL LOAD AMPS5.8/5.8/2.9
  • SHAFT DIAMETER0.875
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6205
  • OPPOSITE END BEARING SIZE6203
  • INSULATION CLASSH
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES19
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH13.31
  • is_motorYes
  • LENGTH INCHES19
  • WIDTH INCHES13.75
  • HEIGHT INCHES12.625
  • WEIGHT LBS42
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES0.875
  • FL EFFICIENCY86.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6203
  • FL AMPS6-5.8/2.9
  • FRAME SIZE145T
