Baldor-Reliance HVAC Motor, ERM3158TA, 3 PH, 3 HP, 208-230/460 V, 3450 RPM, OPEN, 56HZ Frame

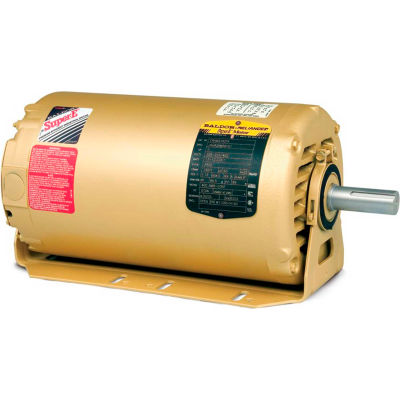

Actual product may differ from image shown

Baldor-Reliance HVAC Motor, ERM3158TA, 3 PH, 3 HP, 208-230/460 V, 3450 RPM, OPEN, 56HZ Frame

Item #: WBB909952

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $562.00

$93.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $562.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance HVAC Motor, ERM3158TA, 3 PH, 3 HP, 208-230/460 V, 3450 RPM, OPEN, 56HZ Frame

Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.

Features
  • Heavy gauge steel base
  • Ball bearings
  • Suitable for mounting in any position
  • Dynamically balanced rotors for reduced vibration and quiet operation
Application(s)
  • Ventilators, summer cooling fans, band saws drill presses, farm equipment.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERERM3158TA
  • HORSEPOWER3
  • MOTOR RPM 60Hz3450
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME56HZ
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONAutomatic
  • RATED RPM3450
  • MOUNTINGResilient
  • FULL LOAD AMPS8.0/7.6/3.8
  • SHAFT DIAMETER0.875
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6205
  • OPPOSITE END BEARING SIZE6203
  • INSULATION CLASSH
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES40.5
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR
  • OVERALL LENGTH13.64
  • is_motorYes
  • LENGTH INCHES18.5
  • WIDTH INCHES10.5
  • HEIGHT INCHES11
  • WEIGHT LBS907
  • RPM RANGE3001-3600
  • SHAFT DIAMETER INCHES1.875
  • FL EFFICIENCY85.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6203
  • FL AMPS8-7.6/3.8
  • FRAME SIZE364T
  • ENCLOSUREOPEN
