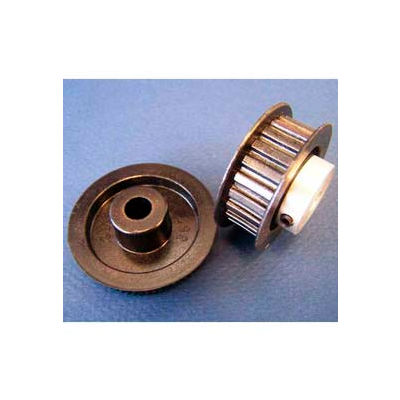

Plastock® Timing Belt Pulley 16t0800sfah1s, Lexan, Al Hub, Sgl Flange, 0.8 Ptch, 16 Teeth

Plastock® Timing Belt Pulley 16t0800sfah1s, Lexan, Al Hub, Sgl Flange, 0.8 Ptch, 16 Teeth

Item #: WBB783034

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 25

Price: $8.80

Save $0.44 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Plastock® Timing Belt Pulleys 16T0800SFAH1S, Lexan, AL Hub, Single Flange, 0.8 Pitch, 16 Teeth
Features

  • Plastock Timing Belt Pulleys are injection molded Polycarbonate or Acetal
  • 0.0800 Pitch (MXL)
  • 0.0816 Pitch (40DP)
  • 1/5 Pitch (XL)
  • 3/8 Pitch (L)
  • 3 & 5MM Pitch (HTD)
  • Available in Single and Double Flange, with or without aluminum hubs.

Product Specifications

  • # OF TEETH16
  • MANUFACTURERS PART #16T0800SFAH1S
  • PITCH INCHES0.8 (MXL)
  • MATERIALLexan W/Aluminum Hub
  • BRANDPlastock
  • FOR BELT SIZE INCHESUp To 1/4
  • WEIGHT LBS0.010
  • STOCK BORE (B) INCHES0.25
  • SET SCREW SIZE#8-32
  • FLANGE (FD) INCHES0.58
  • PITCH DIA. INCHES0.407
  • OUTER DIA. INCHES0.387
  • HUB PROJ. INCHES1/4
  • LENGTH INCHES11/16
  • FLANGESingle
  • WIDTH INCHES5/16
  • HUB DIA. (H) INCHES7/16
