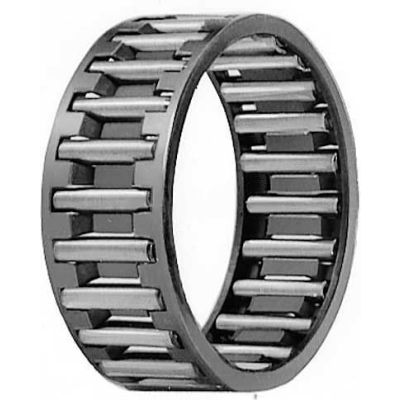

IKO Needle Roller Cage Assembly, 23mm Bore, 30mm OD, 16mm Width, Steel Cage Material
IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2µmRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.
IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2µmRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.
Weights & Dimensions
- Tolerance Roller Diameter +0 / -0.003 mm
- Tolerance Cage Width -0.20 / -0.55
- Shaft Diameter +0 / -0.009 mm
- Width (Bc) 16
- Static Load Rating 22600 N
- Outside Dimension (Ew) 30 mm
- Bore (Fw) Mm/Inch 23 in
- Bore +0.020 / +0.007 in
Product Details
- Dynamic Load Rating (N) 18600
- Oil Max Speed 20000 rpm
- Cage Material Steel
- Temperature Range -20 to +120 °C
- Brand IKO
- Series KT
- Manufacturers Part Number KT233016C3
- Grease Max Speed 10000 rpm
Photo/Video Gallery
Customer Review
Product Q & A
There are no questions for this product.

IKO Needle Roller Cage Assembly, 23mm Bore, 30mm OD, 16mm W, Steel Cage Material
$9.1
