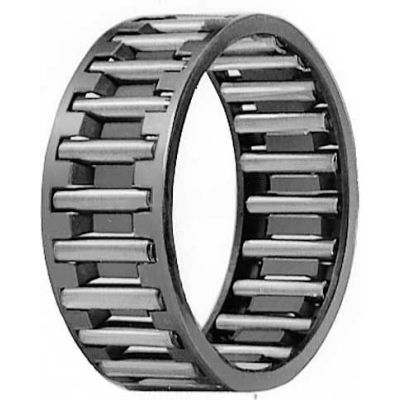

IKO Needle Roller Cage Assembly, 7mm Bore, 10mm OD, 8mm Width, Synthetic Cage Material
IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2µmRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.
IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2µmRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.
Weights & Dimensions
- Tolerance Roller Diameter +0 / -0.003 mm
- Tolerance Cage Width -0.20 / -0.55
- Shaft Diameter +0/ -0.006 mm
- Width (Bc) 8
- Static Load Rating 2690 N
- Outside Dimension (Ew) 10 mm
- Bore (Fw) Mm/Inch 7 in
- Bore +0.014 / +0.005 in
Product Details
- Dynamic Load Rating (N) 2960
- Oil Max Speed 65000 rpm
- Cage Material Synthetic
- Temperature Range -20 to +110 °C
- Brand IKO
- Series KT
- Manufacturers Part Number KT7108NC3
- Grease Max Speed 32500 rpm
Photo/Video Gallery
Customer Review
Product Q & A
There are no questions for this product.
IKO Needle Roller Cage Assembly, 7mm Bore, 10mm OD, 8mm W, Synthetic Cage Material
$6.5
