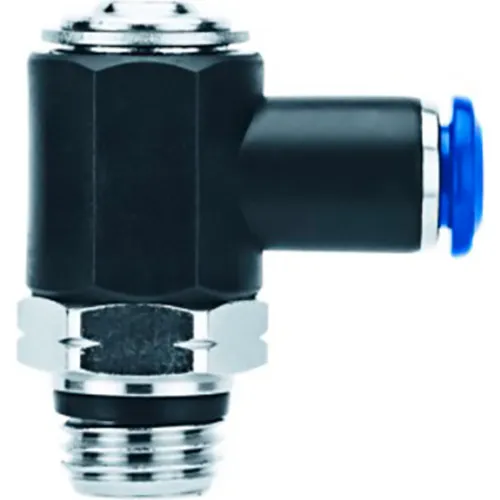

AIGNEP Needle Valve, 85973-53-02, Screw Adj., 5/32" Tube X 1/8" Swift-Fit, Composite Body

AIGNEP Needle Valve, 85973-53-02, Screw Adj., 5/32" Tube X 1/8" Swift-Fit, Composite Body

Item #: WBB1222842

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $11.75

Save $0.59 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

AIGNEP Needle Valve, 89973-04-02, Screw Adj., 1/4" Tube x 1/8" Swift-Fit, Metallic Collet

AIGNEP Needle Valve, 89973-04-02, Screw Adj., 1/4" Tube x 1/8" Swift-Fit, Metallic Collet

AIGNEP Swivel Elbow 87110-04-04, 1/4" Tube x 1/4" Swift-Fit Universal Thread - Pkg Qty 10

AIGNEP Swivel Elbow 87110-04-04, 1/4" Tube x 1/4" Swift-Fit Universal Thread - Pkg Qty 10

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

AIGNEP 1/4" Industrial Plug x 1/2" Hose Barb, 80223-08 - Pkg Qty 10

AIGNEP 1/4" Industrial Plug x 1/2" Hose Barb, 80223-08 - Pkg Qty 10

AIGNEP Mini Ball Valve 86310-02-02, Male X Female, 1/8" Nptf - Min Qty 9

AIGNEP Mini Ball Valve 86310-02-02, Male X Female, 1/8" Nptf - Min Qty 9

AIGNEP Swivel Elbow 87110-04-02, 1/4" Tube x 1/8" Swift-Fit Universal Thread - Pkg Qty 10

AIGNEP Swivel Elbow 87110-04-02, 1/4" Tube x 1/8" Swift-Fit Universal Thread - Pkg Qty 10

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

AIGNEP Union 88040-04, 1/4" Tube - Pkg Qty 10

AIGNEP Union 88040-04, 1/4" Tube - Pkg Qty 10

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

AIGNEP Mini Ball Valve 86300-04-04, 1/4" Female Nptf - Min Qty 9

AIGNEP Mini Ball Valve 86300-04-04, 1/4" Female Nptf - Min Qty 9

AIGNEP Swivel Elbow 87110-06-04, 3/8" Tube x 1/4" Swift-Fit Universal Thread - Pkg Qty 10

AIGNEP Swivel Elbow 87110-06-04, 3/8" Tube x 1/4" Swift-Fit Universal Thread - Pkg Qty 10

AIGNEP Straight Male 88020-02-32, 1/8" Tube x 10-32 UNF Thread - Pkg Qty 10

AIGNEP Straight Male 88020-02-32, 1/8" Tube x 10-32 UNF Thread - Pkg Qty 10

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Exair Compressed Air Hose 901179-30, 1/2" MNPT X 1/2" MNPT, 30' L X 1/2" I.D.

Exair Compressed Air Hose 901179-30, 1/2" MNPT X 1/2" MNPT, 30' L X 1/2" I.D.

Cejn® ARO Interchange Multi-Link Kit 1/4" Body Size x4 Safety Couplings 1/2" Female Inlet

Cejn® ARO Interchange Multi-Link Kit 1/4" Body Size x4 Safety Couplings 1/2" Female Inlet

AIGNEP Needle Valve, 85973-53-02, Screw Adj., 5/32" Tube X 1/8" Swift-Fit, Composite BodySimplify the world of push-to-connect fittings with the Alpha Swift-Fit. One fitting that works with either tapered or straight threads. NPT, ISO 228, BSPP, ISO 7 BSPT, G Thread. If you have a pipe thread, you can count on Swift-Fit to seal without leaking. Port size can easily be identified but what about that thread pitch? Tapered, straight, inch, metric who knows? Assumptions are made, threads are stripped, and expensive equipment destroyed. You could try and retap threads; you might have to wait for a new component to be delivered. In any case, down-time is increased; production time is lost all over a simple fitting. Save time, save money by using Alpha Swift-Fit.

Weights & Dimensions

  • Thread Universal in
  • Tube Size 5/32 Tube in
  • Nominal Flow Diameter 5/32 in
  • Thread Size 1/8 Male Swift-Fit in
  • Applicable Tubing OD 5/32" Tube
  • Weight 0.02 lbs

Product Details

  • Adjustment Type Screwdriver Adjust
  • Description Needle Valve
  • Type Needle Valve
  • For Use With Compressed Air, Vacuum, Water
  • Connection Thread 1/8" Male Swift-Fit
  • Brand Aignep USA
  • Package Quantity 1
  • Connector Type A x B 5/32" Tube x 1/8" Male Swift-Fit
  • PSI Vacuum to 290 PSI psi
  • Temperature Rating -4 F to 176 F
  • Material Composite Body
  • Style Swift-Fit
  • Manufacturers Part Number 85973-53-02
  • Min Burst Pressure 870 PSI psi
  • Body Material Composite
  • Respirator Connection Type Push-Connect/Threaded
