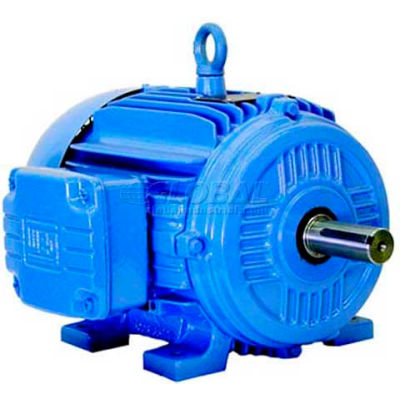

Actual product may differ from image shown
Price: $735.00
$122.50/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Quantity Discount
- Buy 1-2 $735.00 ea.
- Buy 3+ $707.00 ea.
Customers Also Viewed
WEG NEMA Premium Efficiency Motor, 00218ET3E145TC-W22, 2 HP, 1800RPM, 208-230/460V, TEFC, 145TC, 3PH
TEFC motors are built according to NEMA specifications and designed for operation in moist or dust atmospheric conditions without affecting their useful life. Premium Efficiency WEG motors are tested according to IEEE 112 std., method 'B' and their efficiency values are certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels.
TEFC motors are built according to NEMA specifications and designed for operation in moist or dust atmospheric conditions without affecting their useful life. Premium Efficiency WEG motors are tested according to IEEE 112 std., method 'B' and their efficiency values are certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels.
Weights & Dimensions
- Dimension C 13.346 in
Product Details
- RPM Range 1701-1800 rpm
- Kilowatts 1.5 kW
- Voltage 208-230/460 V
- Mounting Location C-Face Rigid
- Frame 145TC
- Service Factor 1.25
- Horsepower 2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 3
- Enclosure TEFC
- Compatible Part/Model Number Baldor CEM3587T, Leeson G120276, Marathon 145TTFR4040
- Full Load Efficiency 86.5
- Brand WEG
- Full Load Amps 5.77-5.22/2.61 FLA
- Motor RPM 60 Hertz 1800 rpm
- Hertz 60 Hz
- Manufacturers Part Number 00218ET3E145TC-W22
- Nameplate RPM 1800 rpm
Customer Review
Product Q & A
There are no questions for this product.
Accessories
Save $291.05 with this comparable product
Hyundai PEM Motor HHI2-18-145TC, TEFC, Rigid-C, 3 PH, 145TC, 2 HP, 1800 RPM, 3 FLA
Item #: B763413
Not Yet Rated
Usually ships in 3 to 6 days
$443.95
compare items
WEG NEMA Premium Efficiency Motor, 00218ET3E145TC-W22, 2 HP, 1800RPM, 208-230/460V, TEFC, 145TC, 3PH
$735.0
