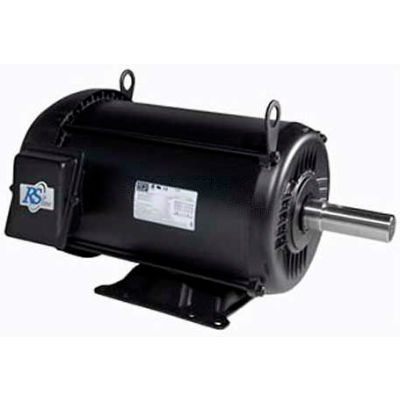

WEG NEMA Premium Efficiency Motor, 00536ET3ERSR184TC, 5HP, 3600RPM, 208-230/460V, TEFC, 182/4TC, 3PH
TEFC motors are built according to NEMA specifications and designed for operation in moist or dust atmospheric conditions without affecting their useful life. Premium Efficiency WEG motors are tested according to IEEE 112 std., method 'B' and their efficiency values are certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels.
TEFC motors are built according to NEMA specifications and designed for operation in moist or dust atmospheric conditions without affecting their useful life. Premium Efficiency WEG motors are tested according to IEEE 112 std., method 'B' and their efficiency values are certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels.
Weights & Dimensions
- Dimension C 16.404 in
Product Details
- RPM Range 3001-3600 rpm
- Kilowatts 3.7 kW
- Voltage 208-230/460 V
- Mounting Location C-Face Footless
- Frame 182/4TC
- Service Factor 1.15
- Horsepower 5 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 3
- Enclosure TEFC
- Full Load Efficiency 89.5
- Brand WEG
- Full Load Amps 13.0-11.8/5.90 FLA
- Motor RPM 60 Hertz 3600 rpm
- Hertz 60 Hz
- Manufacturers Part Number 00536ET3ERSR184TC
- Nameplate RPM 3600 rpm
