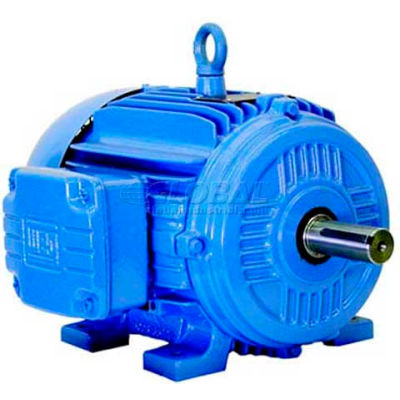

Actual product may differ from image shown
Price: $5,442.00
$907.00/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Product Information
Customer Review
Product Q&A
Accessories
WEG NEMA Premium Efficiency Motor, 05018ET3E326TC-W22, 50HP, 1800RPM, 208-230/460V, TEFC, 326TC, 3PH
TEFC motors are built according to NEMA specifications and designed for operation in moist or dust atmospheric conditions without affecting their useful life. Premium Efficiency WEG motors are tested according to IEEE 112 std., method 'B' and their efficiency values are certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels.
TEFC motors are built according to NEMA specifications and designed for operation in moist or dust atmospheric conditions without affecting their useful life. Premium Efficiency WEG motors are tested according to IEEE 112 std., method 'B' and their efficiency values are certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels.
Weights & Dimensions
- Dimension C 31.116 in
Product Details
- RPM Range 1701-1800 rpm
- Kilowatts 37 kW
- Voltage 208-230/460 V
- Mounting Location C-Face Rigid
- Frame 326TC
- Service Factor 1.25
- Horsepower 50 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 3
- Enclosure TEFC
- Compatible Part/Model Number Baldor CEM4115T, Marathon 326TTFPA4028
- Full Load Efficiency 94.5
- Brand WEG
- Full Load Amps 131-118/59.2 FLA
- Motor RPM 60 Hertz 1800 rpm
- Hertz 60 Hz
- Manufacturers Part Number 05018ET3E326TC-W22
- Nameplate RPM 1800 rpm
