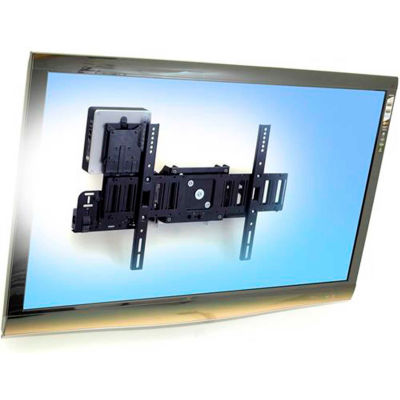

Ergotron® SIM90 Signage Integration Mount

Fully integrated, all-in-one wall mounting system includes all components for installing large display digital signage solutions; one box, one part number—everything you need including VESA-compliant thin client CPU holder, portrait-to-landscape pivot and fasteners.

Features:
  • Includes wall and display brackets, quick-release VESA-CPU mount/power brick bracket, hardware fastener kit
  • Ideal for 32" and larger displays up to 105 lbs (47.6 kg). Total weight capacity is 115 lbs (52.2 kg): 105 lbs (47.6 kg) for display, 7 lbs (3.2 kg) for CPU, 3 lbs (1.4 kg) for cables and power brick
  • Tilt: Smooth continuous display tilt range from 0° to 15° forward; Tilt range may be restricted when displays are in portrait mode
  • Easily rotate display to either a portrait or landscape orientation without removing the display
  • Mounting Hole Patterns: Horizontal measurement = 200 mm, 300 mm, 400 mm, 440 mm, 500 mm or 600 mm. Vertical measurement = 200 mm or 225 mm-400 mm. With optional 800 mm Accessory Kit (97-489, ordered separately), horizontal measurement can be expanded to 800 mm or 660 mm
  • Portrait or landscape orientation may be dependent on content software or graphic card capabilities
  • Complete wall mount solution for digital signage applications
  • Easily attaches VESA-compliant (75/100 mm) thin client CPU: CPU must have either 75 x 75 mm or 100 x 100 mm mounting holes on one side
  • Maximum CPU size (W x H x D) = 13.5" x 10" x 2.6" (34.3 x 25.4 x 6.6 cm), up to 7 lbs (3.2 kg). Power brick maximum weight = 3 lbs (1.4 kg)
  • Mounting Options: Includes hardware for mounting to wood studs (16" centered studs) or concrete wall surfaces
  • Includes screws to secure display for theft deterrence
  • Display can be positioned at different points on the wall bracket; this lateral shift of the display's position relative to the wall studs can be as much as 5.7" (14.5 cm)
  • Profile off the wall: 4.8" (12 cm)
  • Note: Portrait orientation is not recommended for some plasma displays. Contact display manufacturer if you have questions regarding your plasma's portrait-mode capability (this is not an issue with LCD technology)

Product Specifications

  • BRANDErgotron®
  • MANUFACTURERS PART NUMBER60-600-009
  • WIDTH INCHES19
  • DEPTH INCHES4-3/4
  • HEIGHT INCHES18
  • WEIGHT LBS24
  • DESCRIPTIONSIM90 Signage Integration Mount
  • CONSTRUCTIONSteel
  • COLOR FINISHBlack
  • DISPLAY TYPESingle Monitor
  • LCD SIZE32" - 60"
  • WEIGHT CAPACITY105 lbs
  • LIFT--
  • TILT (DEGREES)15°
  • PAN (DEGREES)--
  • ROTATION (DEGREES)90°
  • VESA COMPATIBLEYes
  • VESAMIS-F
  • MOUNTING HOLE PATTERN (MM)Up to 600 x 400
  • MOUNT TYPEWall
  • STYLETilt and Swivel
  • TYPEWall Mount
  • PACKAGE QUANTITY1
  • ASSEMBLYUnassembled
  • LIMITED WARRANTY5 Years
