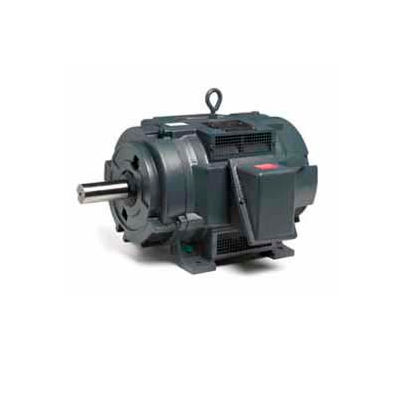

Actual product may differ from image shown
Price: $9,426.00
$1,571.00/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Marathon Motors Oil Well Pump Motor, Y212, 75HP, 460/796V, 1200RPM, 3PH, 444T FR, DP
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Product Details
- 60 Hertz kW 56 kW
- Mounting Location Rigid
- Bearing Drive End 6318
- Assembly Required F2 (F1 Modification Available)
- RPM 1200 rpm
- Ambient Temperature SPL °C
- KVA Code H
- IP Code 22
- Insulation Class F
- RPM Range 1101-1200 rpm
- Voltage 460 V
- Frame 444T
- Service Factor 1.15
- Horsepower 75 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Oil Well
- Phase 3
- Enclosure DP
- Orientation Horizontal
- 60 Hertz RPM 1200 rpm
- Starting Type Across the Line
- Full Load Efficiency 90.2
- Brand Marathon Motors
- Full Load Amps 91.5/53 FLA
- Motor RPM 60 Hertz 1200 rpm
- Thermal Protection Thermostats (Normally Closed)
- Manufacturers Part Number Y212
Compliance & Certifications
- NEMA Design D
- CSA Certified N
- UL Recognized Construction
Weights & Dimensions
- Drive End Bearing Size 6318
- Opposite End Bearing Size 6316
- Weight 1239 lbs
