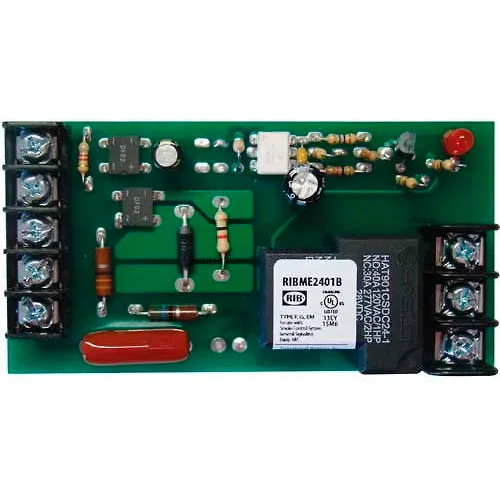

RIB® Panel Relay RIBME2401B, 4"x2.05", 20A, SPDT, 24VAC/DC/120VAC Power, 5-30VAC/DC Control
The optoisolated series of relays may be used when the controller does not have sufficient coil drive power available to energize a relay of the desired contact rating. The power to energize the relay can be brought to the relay on a separate pair of wires along with the control output of the controller, or can be a local power source near the relay.
The optoisolated series of relays may be used when the controller does not have sufficient coil drive power available to energize a relay of the desired contact rating. The power to energize the relay can be brought to the relay on a separate pair of wires along with the control output of the controller, or can be a local power source near the relay.
Weights & Dimensions
- Width 4 in
- Length 2.05 in
- Height 1.75 in
- Wire Size 16 in
Product Details
- Operating Temperature -30° To 140°F
- Humidity Range 5 To 95 Percent (Noncondensing)
- Voltage 24VAC/DC 120VAC V
- Expected Relay Life 10 Million Cycles Minimum Mechanical
- Description Panel Relay
- Number of Relays 1
- Amperage 20 A
- Wire Rating 600V
- Brand RIB
- Manufacturers Part Number RIBME2401B
- Contact Type SPDT
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications UL Listed
Customer Review
Product Q & A
There are no questions for this product.

RIB® Panel Relay RIBME2401B, 4"x2.05", 20A, SPDT, 24VAC/DC/120VAC Power, 5-30VAC/DC Control
$24.75
