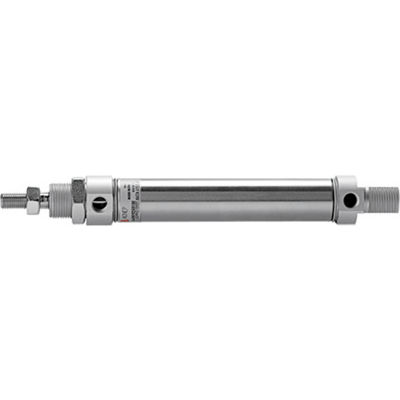

Drop in replacement for ISO 6432 standardized cylinders. Double-acting, cushioned. These cylinders are used in a myriad of MRO and OEM pneumatic automation applications. Zinc-plated steel rod jam nut, 303 stainless steel piston rod, polyurethane rod seal, anodized aluminum end cap, zinc plated mounting nut, sintered bronze rod bearing, NBR O-ring seals, neoprene bumper, brass piston, polyurethane piston seal, bonded ferrite magnet, 304 stainless steel body
Product Specifications
- MOUNTING STANDARDISO 6432
- PSI145
- TYPENBR
- MANUFACTURERS PART NUMBERMH0160080
- BRANDAignep USA
- TEMPERATURE RANGE176 F
- DESCRIPTION16mm Bore x 80mm Stroke
- USE FORFiltered and Lubricated or Non-Lubricated Compressed Air
