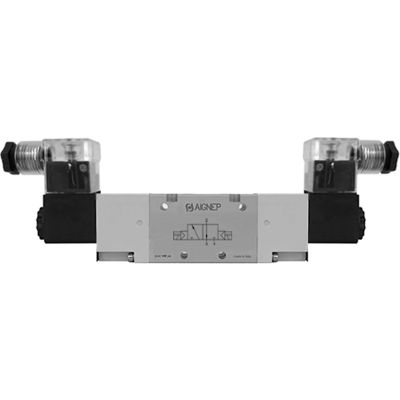

Aignep USA 3/2 Double Solenoid Valve, Ext Pilot G 1/4, 110V AC/5VA Coil, LED Connection

Aignep USA 3/2 Double Solenoid Valve, Ext Pilot G 1/4, 110V AC/5VA Coil, LED Connection

Item #: WBB2398699

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $122.95

Save $6.15 with 5% off when you use your Global Industrial Credit Card.

Quantity

Aignep USA's 01VA series pneumatic external solenoid pilot valves provide a high quality control solution for your pneumatic cylinders, components and operations. Offered in all common voltages from 12VDC up through 220VAC, these external pilot valves are offered in convenient combo packages that include the valve, solenoid and connector. Actions available are 3/2, 5/2 and 5/3, the latter offered in closed, pressure and open centers. Port sizes are offered in 1/8 and 1/4 NPT and BSPP threads. Flow rates are 740 NL/min for 1/8" ports, 1200 NL/min for 1/4." All valves operate from vacuum up to 145 psi working pressure, with 14.5 psi of baseline pilot pressure required for bistable valves and 29 psi of baseline pilot pressure required to actuate monostable valves. The seals are made of durable NBR and allow the valves to operate between 14 - 140 degrees F. The body is comprised of anodized and painted aluminum, where the spool is chemical nickel plated steel.

Product Specifications

  • BRANDAignep USA
  • DESCRIPTIONPneumatic Pilot Spool Valve
  • TYPE3 Port 2 Position
  • SEAL TYPENBR
  • PRESSURE RANGE14.5 -145 PSI
  • APPROVALREACH, RoHS, ISO 9001
  • THREAD TYPEBSPP
  • PORT SIZE1/4"
  • PSI [MAX]145
  • MANUFACTURER PART NUMBER01VA1300030502
  • TEMPERATURE RANGE14 - 140°F
  • CONSTRUCTIONAluminum Body/Chem-Treated Nickel Plated Spool
