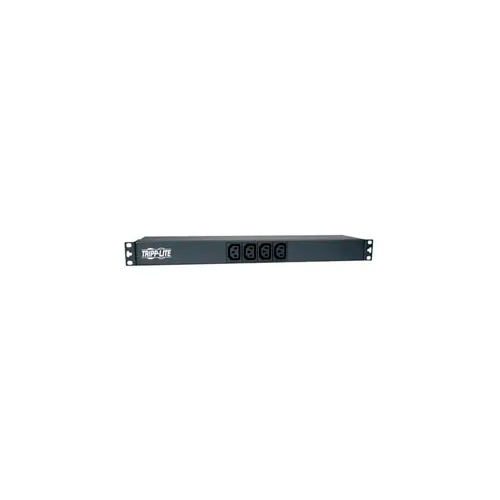

Tripp Lite PDU12IEC Power Distribution Unit 19" 1U 12x C13, 2x C19, 100-240V 16A

Tripp Lite's PDU12IEC AC power distribution unit offers 16 amp capacity in a versatile 100-240 volt, worldwide compatible, multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 14 outlets measuring only 4.25 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU12IEC ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 IEC320 C13 and 2 IEC320 C19 outlets, IEC320 C20 inlet connector (user supplies appropriate input cable), set of 16 amp circuit breakers, grounding lug and rugged all-metal case design.

PLUG/OUTLETS - Inlet connection: IEC320 C20/Output: 12 IEC-320 C13 and 2 IEC-320 C19 outlets

ELECTRICAL - 100-240VAC, 50/60Hz, 16A total (User supplies appropriate input cable)

FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more

• Corded AC power distribution unit with 16 amp capacity in a versatile 100-240 volt, worldwide compatible, multi-mount cabinet
• Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or 0U formats
• Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure
• Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
• Attractive all-metal housing receptacles measures only 4.25 in. in depth
• 12 IEC320 C13 and 2 IEC320 C19 output receptacles accept common IEC320 C14 and C20 equipment plugs
• IEC320 C20 inlet connection supports a variety of appropriate user-supplied input cords
• Switch-free design prevents the potential for accidental shutoff of connected loads
• 16 amp total electrical capacity with seperate 16A circuit breakers
• 100-240V AC, 50/60Hz electrical compatibility
