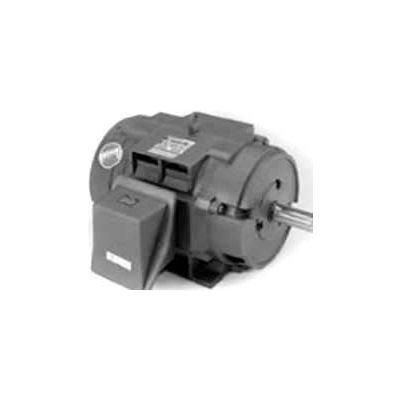

Marathon Motors Premium Efficiency Motor, E1931, 5HP, 1800RPM, 208-230/460V, 3PH, 184T FR, DP
Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.
Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.
Weights & Dimensions
- Opposite End Bearing Size 6205
- Weight 80
- Drive End Bearing Size 6206
Product Details
- 60 Hertz kW 3.7 kW
- Mounting Location Rigid
- Assembly Required F1 (F2 Modification Available)
- Bearing Drive End 6206
- 50 Hertz Kilowatts 2.24 kW
- Ambient Temperature 40 °C
- Nameplate RPM 1800 rpm
- KVA Code J
- IP Code 22
- Insulation Class F
- RPM Range 1701-1800 rpm
- 50 Hertz SF 1
- 50 Hertz Horsepower 3 HP
- Bearing Opp Drive End 6205
- Voltage 208-230/460 V
- Frame 184T
- Service Factor 1.15
- Horsepower 5 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Continuous
- Phase 3
- Enclosure DP
- Orientation Horizontal
- Starting Type LINE OR INVERTER
- 50 Hertz RPM 1500 rpm
- Full Load Efficiency 89.5
- Brand Marathon Motors
- Full Load Amps 13.6-12.6/6.3 FLA
- Motor RPM 60 Hertz 1800 rpm
- Thermal Protection Automatic Protector Thermostats (Normally Closed)
- Manufacturers Part Number E1931
- 50 Hertz Full Load Amps 9.8/4.9 FLA
- 50 Hertz Voltage 190/380 V
Compliance & Certifications
- CE Approved Y
- NEMA Design B
- CSA Certified Y
- UL Recognized Construction
