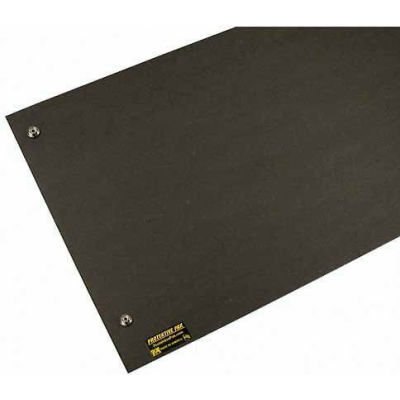

Protektive Pak Pro-Mats Work Surface, Female Snaps, 23-1/2"L x 35-1/2"W x 1/16"H
Features:
"The most important functional consideration for work surfaces is the RTG resistance from the top of the surface to the groundable point." ANSI/ESD S20.20 Table 1 recommends a requirement of less than 1 X 10^9 ohms. "If Charged Device Model damage is a concern then setting a lower resistance limit should be considered. Typically, 1 x1 0^6 ohms." "Durability factors that should be considered are hardness, abrasion resistance, tear resistance, etc. Work surfaces may require special heat resistant materials. Light reflection may be an important ergonomic consideration." (Ref: TR 20.20 section 5.3.1).
Features:
- Solid fiberboard construction with a buried conductive layer
- Includes two installed 3/8" socket snaps - stud snaps available
- Resists damage by hot soldering irons, solder, or flux
- RTT of top and bottom layers: 10E6 - 10E8 ohms - meets work surface recommendation of ANSI/ESD S4.1
- Thickness: 0.060" (1.5mm)
- Lead-free RoHS compliant
- Made in the United States of America
"The most important functional consideration for work surfaces is the RTG resistance from the top of the surface to the groundable point." ANSI/ESD S20.20 Table 1 recommends a requirement of less than 1 X 10^9 ohms. "If Charged Device Model damage is a concern then setting a lower resistance limit should be considered. Typically, 1 x1 0^6 ohms." "Durability factors that should be considered are hardness, abrasion resistance, tear resistance, etc. Work surfaces may require special heat resistant materials. Light reflection may be an important ergonomic consideration." (Ref: TR 20.20 section 5.3.1).
- LENGTH INCHES 23-1/2
- WIDTH INCHES 35-1/2
- HEIGHT INCHES 1/16
- INSIDE LENGTH INCHES 23-1/2
- INSIDE WIDTH INCHES 35-1/2
- INSIDE HEIGHT INCHES 1/16
- ASSEMBLY Assembled
- BRAND Protektive Pak
- COLOR FINISH Black
- CONSTRUCTION Corrugated Fiberboard
- LIMITED WARRANTY 1 Year
- MANUFACTURERS PART NUMBER 39858
- PACKAGE QUANTITY 1
- PRODUCT FAMILY Accessories
- PRODUCT GROUP Accessories
- SERIES Pro Mats
- STYLE Portable Board Handles - Female Snaps
- TYPE ESD Work Surface
- WEIGHT LBS 1.6
- TEMPERATURE TOLERANCE 35 to 451 °F
- accessory_type Mats
