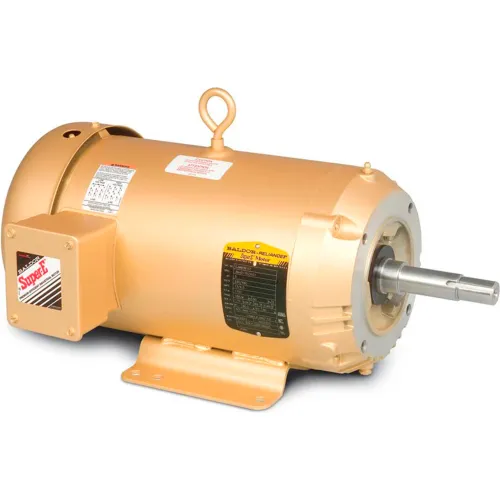

Baldor-Reliance Pump Motor, EJMM3615T, 3 Phase, 5 HP, 208-230/460 Volts, 1750 RPM, 60 HZ, TEFC, 184JM
Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.
Features
Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.
Features
- Heavy gauge steel frames
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Over-sized ball bearings with locked drive end construction to minimize endplay
- Low-loss electrical grade lamination steel
- Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
- Three year warranty
- Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
Weights & Dimensions
- Dimension C 19.56 in
Product Details
- Power Factor 78
- Bearing Drive End 6207
- RPM 1750 rpm
- Type Pump Motor
- Ambient Temperature 40 °C
- KVA Code J
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 208-230/460 V
- Bearing Opp Drive End 6205
- Frame 184JM
- Service Factor 1.15
- Horsepower 5 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Enclosure TEFC
- Phase 3
- Amps @ 208V 13.9 A
- Full Load Efficiency 89.5
- Brand Baldor-Reliance
- Full Load Amps 13.9-13.4/6.7 FLA
- Design Code B
- Motor RPM 60 Hertz 1750 rpm
- Hertz 60 Hz
- Manufacturers Part Number EJMM3615T
Compliance & Certifications
- DOE Code 010A
