Features
- Ball bearings
- Stainless steel shaft extension
- Square Flange pumps, and swimming pool pumps, etc.

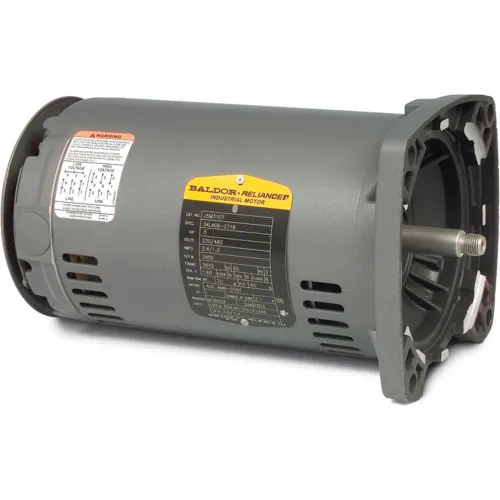

Baldor-Reliance Pump Motor, JSM3107, 3 Phase, 0.5 HP, 230/460 Volts, 3450 RPM, 60 HZ, OPEN, 56YZ
Write a Review
|
Questions & Answers (0)
Product Description
Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.
Features
Features
PRICE
$429.95
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Dimension C | 11-3/8 in |
Product Details
| Power Factor | 65 |
| Bearing Opp Drive End | 6203 |
| KVA Code | N |
| Motor RPM 60 Hertz | 3450 rpm |
| Phase | 3 |
| Manufacturers Part Number | JSM3107 |
| Enclosure | OPEN |
| Service Factor | 1.6 |
| Bearing Drive End | 6203 |
| Brand | Baldor-Reliance |
| RPM | 3,450 rpm |
| Type | Pump Motor |
| Insulation Class | B |
| Horsepower | 1/2 HP |
| Frame | 56YZ |
| Hertz | 60 Hz |
| Design Code | B |
| Amps @ 208V | 3.1 A |
| Enclosure Type | Open/Drip Proof |
| Voltage | 230, 460 V |
| Full Load Efficiency | 70 |
| Full Load Amps | 2.4/1.2 FLA |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 3001-3600 rpm |
