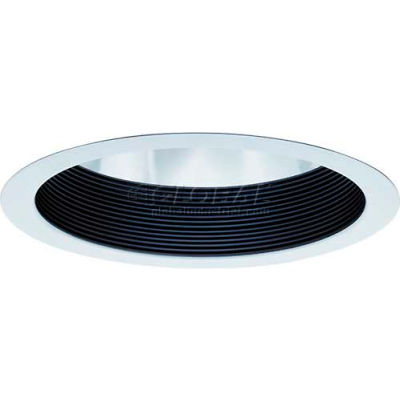

Reflector w/ Black Baffle For 8 Fluorescent Downlight
Intended Use:
Ideal for a wide variety of low- to medium-height ceiling applications including commercial, retail and hospitality spaces where baffle reflectors are required.
Features:
Rugged, galvanized steel frame-in with high-friction retention clips to secure optical system flush to the ceiling. Utilizes an extruded socket housing that attaches to the reflector via key-hole mount, which provides superior heat dissipation and extended lamp life. Socket housing also adjusts to accommodate varying lamp lengths. Aluminum self-flanged full reflectors are optically designed to maximize lumen output and to provide superior glare control. Standard anodized finishes for open reflectors are specular or diffuse in a variety of colors. Polyester powder coat finishes are also available in white or black. The black or white baffled reflectors have a specular upper reflector with a white painted flange standard. Lenses are available in clear flat glass, tempered prismatic glass, or polycarbonate acrylic to provide optimal visual comfort and improved aesthetics. Available Reflector Options8B3, 8B3W
Listings:
Fixtures are UL Listed for through-branch wiring, Non-IC recessed mounting, damp location, and to U.S. and Canadian safety standards.
Construction:
Heavy-gauge die-formed galvanized steel mounting frame. Vertically adjustable mounting brackets for use with 16-gauge flat barhangers (included), C channels or 1/2 steel conduit. Junction boxes equipped with two 3/4 and four 1/2 conduit knockouts with pryout slots and removable access doors. Utilizes an extruded socket housing that attaches to the reflector via key hole mount, which provides superior heat dissipation and extended lamp life. Socket housing also adjusts to accommodate varying lamp lengths. Maximum ceiling thickness 1-1/2.
Ballast:
Electronic ballast with end of life protection standard. Class P thermally protected ballast that protects against improper contact with insulation. Minimum starting temperature is 0°F/-18°C. Rated for #12 AWG conductor through-branch wiring. Minimum 90°C supply wire. Ground wire provided.
Reflector Options:
Available Reflector Options - 8B3, 8B3W
Intended Use:
Ideal for a wide variety of low- to medium-height ceiling applications including commercial, retail and hospitality spaces where baffle reflectors are required.
Features:
Rugged, galvanized steel frame-in with high-friction retention clips to secure optical system flush to the ceiling. Utilizes an extruded socket housing that attaches to the reflector via key-hole mount, which provides superior heat dissipation and extended lamp life. Socket housing also adjusts to accommodate varying lamp lengths. Aluminum self-flanged full reflectors are optically designed to maximize lumen output and to provide superior glare control. Standard anodized finishes for open reflectors are specular or diffuse in a variety of colors. Polyester powder coat finishes are also available in white or black. The black or white baffled reflectors have a specular upper reflector with a white painted flange standard. Lenses are available in clear flat glass, tempered prismatic glass, or polycarbonate acrylic to provide optimal visual comfort and improved aesthetics. Available Reflector Options8B3, 8B3W
Listings:
Fixtures are UL Listed for through-branch wiring, Non-IC recessed mounting, damp location, and to U.S. and Canadian safety standards.
Construction:
Heavy-gauge die-formed galvanized steel mounting frame. Vertically adjustable mounting brackets for use with 16-gauge flat barhangers (included), C channels or 1/2 steel conduit. Junction boxes equipped with two 3/4 and four 1/2 conduit knockouts with pryout slots and removable access doors. Utilizes an extruded socket housing that attaches to the reflector via key hole mount, which provides superior heat dissipation and extended lamp life. Socket housing also adjusts to accommodate varying lamp lengths. Maximum ceiling thickness 1-1/2.
Ballast:
Electronic ballast with end of life protection standard. Class P thermally protected ballast that protects against improper contact with insulation. Minimum starting temperature is 0°F/-18°C. Rated for #12 AWG conductor through-branch wiring. Minimum 90°C supply wire. Ground wire provided.
Reflector Options:
Available Reflector Options - 8B3, 8B3W
Weights & Dimensions
- Width 9.5 in
- Length 9.5 in
- Height 12.375 in
- Weight 1.5 lbs
Product Details
- Reflector Options 8B3, 8B3W
- Description 8 CFL Vertical (Spec Line)
- Brand Lithonia Lighting
- Series LP8N
- Manufacturers Part Number 8B3
- Color Family Black
- CI Code 975826
Customer Review
Product Q & A
There are no questions for this product.

Lithonia 8B3 Reflector w/ Black Baffle For 8" Fluorescent Downlight
$48.95
