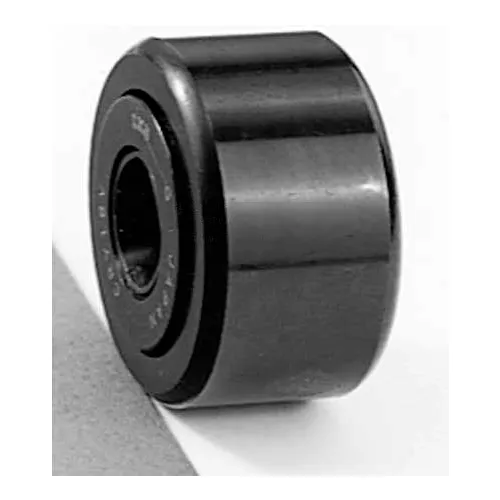

IKO Roller Follower- Full Comp- Inch, CRY16VUU, Double Sealed, 1" OD

IKO Non-separable Yoke Type Roller Follower is full complement bearing with inner ring, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. Its surface is treated with black oxide coating. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.

Weights & Dimensions

  • Bore Tolerance +0.005 / -0.010
  • Outside Dimension 25.400 (1) in
  • Width 17.463 (.6875) mm
  • Tolerance Outer Ring Width +0 / -0.130
  • Outer Ring Width 15.875 (5/8) in
  • Outer Ring Corner Radius Min 1.191 (3/64)
  • Side Plate OD (A) 19.6 (.772) in
  • Outside Dimension Tolerance +0 / -0.025 mm
  • Tolerance Overall Width +0.130 / -0.250
  • Bore Diameter 7.938 (5/16) in
  • Static Load Rating 22700 N

Product Details

  • Shaft Diameter Push Fit 7.920 to 7.930
  • Shaft Diameter Drive Fit 7.935 to 7.945
  • Prepacked Grease YES
  • Type Double Sealed
  • Oil Hole & Groove At inner ring
  • Needle Construction Full Compliment
  • Bearing Style Cylindrical OD
  • Dynamic Load Rating (N) 13100
  • Description Roller Follower - Full Compliment - Inch Series
  • Shaft Diameter Press Fit 7.940 to 7.950
  • Track Capacity 7270 N
  • Retainer Material None
  • Brand IKO
  • Series CRY
  • Manufacturers Part Number CRY16VUU
  • Radial Clearance 0.035 to 0.060
