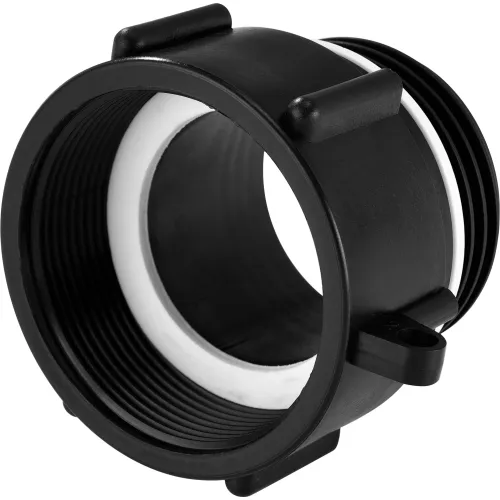

Global Industrial™ S56X4 Tri Sure Male Buttress to 2" Female BSP Pipe Thread

Global Industrial™ S56X4 Tri Sure Male Buttress to 2" Female BSP Pipe Thread

Item #: WBB700363

(11)

Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial™ S56X4 Tri Sure Male Buttress to 2" Female BSP Pipe Thread
  • Global Industrial™ Elastic Polyethylene Drum Cover for 55 Gallon Drum - Pkg Qty 100

    $175.00

  • Oil-Dri® Universal Bonded Drum Top Pads - 22" Dia. - 3.2 Gallon Capacity - 10 Pads per Bale

    $35.95

$8.76 up to 18% OFF

Price: $7.20

Save $0.36 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Global Industrial™ S64X5 American Male Buttress to 2" Female BSP Pipe Thread

Global Industrial™ S64X5 American Male Buttress to 2" Female BSP Pipe Thread

Global Industrial™ S70X6 European Male Buttress to 2" Female BSP Pipe Thread

Global Industrial™ S70X6 European Male Buttress to 2" Female BSP Pipe Thread

Action Pump 70mm Coarse Bung Buttress to 2" NPT - 70MM-25

Action Pump 70mm Coarse Bung Buttress to 2" NPT - 70MM-25

Action Pump 63mm Coarse Bung Buttress to 2" NPT - 63MM-25

Action Pump 63mm Coarse Bung Buttress to 2" NPT - 63MM-25

Action Pump Ryton Rotary Drum Pump 3004 - 8 GPM

Action Pump Ryton Rotary Drum Pump 3004 - 8 GPM

Action Pump Siphon Drum Pump 4008 for Light Oil, Kerosene, Water Based Chemicals

Action Pump Siphon Drum Pump 4008 for Light Oil, Kerosene, Water Based Chemicals

Action Pump Siphon Drum Pump 5000 for Light Oil, Kerosene, Water Based Chemicals

Action Pump Siphon Drum Pump 5000 for Light Oil, Kerosene, Water Based Chemicals

Action Pump Piston Pump 6008 for Detergents, Waxes, Water Solubles

Action Pump Piston Pump 6008 for Detergents, Waxes, Water Solubles

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Global Industrial™ Open & Closed Head Drum Lifter 1000 Lb. Capacity

Global Industrial™ Open & Closed Head Drum Lifter 1000 Lb. Capacity

Wesco® Polyethylene Plastic 2" Drum Faucet 272179

Wesco® Polyethylene Plastic 2" Drum Faucet 272179

Oil-Dri® Universal Bonded Drum Top Pads - 22" Dia. - 3.2 Gallon Capacity - 10 Pads per Bale

Oil-Dri® Universal Bonded Drum Top Pads - 22" Dia. - 3.2 Gallon Capacity - 10 Pads per Bale

Drum bung adapters create compatible connections for installing pumps on plastic drums.

Its high-quality polypropylene construction is rated to 150 psi and suitable for use with most plastic drum chemical contents

Thread Compatibility Details:

  • S56X4 Tri Sure Male Buttress
  • 56.0mm (2.20") outside diameter and 50.0mm (2.00") inside diameter with 4.0mm (.158") thread pitch (distance between threads)


Refer to Key S56X4 in REFERENCE CHART.

Weights & Dimensions

  • Thread 56mm (2.2) O.D. x 4 Male Drum Thread to 2 Female NPT Pipe Thread in

Product Details

  • Description S56 x 4 Tri Sure Male Buttress to 2" Female BSP Pipe Thread
  • Assembly Required Assembled
  • Type Drum Bung Adapters
  • Reference Chart S56X4
  • Package Quantity 1
  • Brand Global Industrial
  • Product Type Accessory
  • Material Polypropylene
  • Style 15, 30 or 55 Gallon Drums
  • Seal Material LDPE
  • Manufacturers Part Number B700363
  • Color Family Black
  • Body Material Polypropylene
Customer Review

5.0

  • 5 Star

    11
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Peter

    Date: April 25, 2021

    2" BSP threads fit with 2" NPT
    Your review:
    I was a bit unsure about the female side of this adapter, as it was referred to as 2" NPT in some places, but also clearly marked 2" BSP. But after receiving the adapters, I tried a 2" male ABS NPT thread and it screws smoothly in. It didn't hit a spot where the threads themselves locked, but it looks like you could screw a nipple all the way down to the washer at the bottom, or if you are using a a 2" NPT adapter with a shoulder, you could put an o-ring or some sealant around the outside and it should hold fine, at least for low-pressure applications. I bought these for insulated fish totes (Smak, but should also work with Daco and similar), and they are a better price than the Daco/Saeplast adapters to plumb the fish tote as a live well.
  • Reviewer: Anonymous

    Date: September 18, 2019

    proper
    Your review:
    Perfect fit, strong and durable.
  • Reviewer: Anonymous

    Date: May 17, 2019

    works when other things didn't
    Your review:
    We received a barrel made in Mexico or Europe with product in it and our pumps didn't thread properly. This adapter was perfect the moment we put it on. Highly recommend.
  • Reviewer: Anonymous

    Date: March 26, 2018

    I had a hard time finding this adapter!
    Your review:
    Global is the only place I found this piece! Its the right part I ordered and is well made!
  • Reviewer: Anonymous

    Date: September 27, 2017

    adaptors
    Your review:
    we got these due to the OEM of our chemical stopped supplying them. Due to what I call weird thread pitch Global was the only one that carried this, that I found easily.
  • Reviewer: Anonymous

    Date: May 11, 2016

    Perfect fit
    Your review:
    Looked for three weeks to find a buttress that would join my pump to the plastic barrel. Wish I had known about you guys earlier! Thank you.
  • Reviewer: Anonymous

    Date: May 10, 2016

    work great
    Your review:
    works great
  • Reviewer: Anonymous

    Date: August 03, 2015

    CPP S56 x 4 Tri Sure Male Buttress to 2" Fema
    Your review:
    Works great. It's just what we needed to make our hand pumps work perfectly with the Italian barrels.
  • Reviewer: Anonymous

    Date: July 07, 2015

    Tri Sure Male Buttress
    Your review:
    We needed this piece to work with a 55g barrel to a hand-held pump. It's fantastic. Works great. Ordering many more...
  • Reviewer: Anonymous

    Date: November 24, 2014

    Exactly what I needed
    Your review:
    I was setting up a rain catchment system which was to use 55 gallon food grade barrels. I found out the hard way that the bungs were metric. I searched all over the net and was able to find this same adapter for $64.00 if I ordered a minimum of 10. I stumbled across Global's adapter for just a couple of bucks. From the pictures it looks exactly like the expensive ones. This saved me a bundle !
