IKO Separable Roller Follower- Metric, NAST20ZZUU, Double Sealed, 20 mm Bore, 47 mm OD

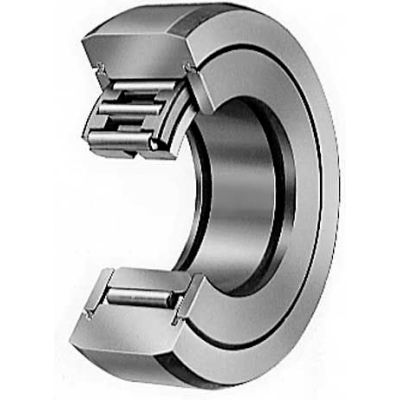

IKO Separable Roller Follower consists of inner ring, needle roller cage, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. These parts can be easily separated providing an easy handling. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Double Sealed followers (suffix ZZUU & ZZUUR) come with pre-packed grease. Since no grease is provided for Double Shielded (suffix ZZ & ZZR), adequate lubrication must be added. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.
IKO Separable Roller Follower consists of inner ring, needle roller cage, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. These parts can be easily separated providing an easy handling. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Double Sealed followers (suffix ZZUU & ZZUUR) come with pre-packed grease. Since no grease is provided for Double Shielded (suffix ZZ & ZZR), adequate lubrication must be added. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.
Weights & Dimensions
- Bore Tolerance +0 / -0.010
- Outside Dimension 47 in
- Width 20 mm
- Tolerance Outer Ring Width +0 / -0.120
- Min Inner Ring Corner Radius 1 in
- Outer Ring Width 19.8 in
- Outer Ring Corner Radius Min 3
- Side Plate OD (A) 38 in
- Outside Dimension Tolerance +0 / -0.011 mm
- Tolerance Overall Width +0 / -0.120
- Bore Diameter 20 in
- Static Load Rating 24500 N
Product Details
- Prepacked Grease YES
- Type Double Sealed
- Oil Hole & Groove At inner ring
- Needle Construction Caged
- Dynamic Load Rating (N) 19400
- Description Separable Roller Follower - Metric Series
- Shaft Diameter H6 Fit +0 to -0.013
- Track Capacity 13800 N
- Retainer Material Pressed Steel
- Brand IKO
- Series NAST
- Shaft Diameter G6 Fit -0.007 to -0.020
- Manufacturers Part Number NAST20ZZUU
- Radial Clearance 0.010 to 0.030
