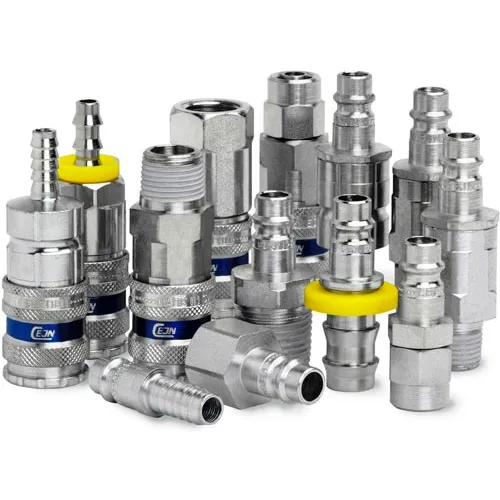

Series 320 couplings feature the original high-flow valve design upon which all other Cejn pneumatic couplings are based. Their popularity has made Cejn Series 320 a European Standard. The Series is easy-to-handle and one-hand operated and offers long service life. Male threads on the couplings and nipples feature pre-applied thread sealant. The Series 320 vented safety version is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation, which has the potential to cause operator injury. Full automatic operation ensures easy handling. The vented safety version complies with ISO Standard 4414 and EN 983.
- Extremely High Flow Capacity
- Easy To Connect
- Strong And Durable
Weights & Dimensions
- Nominal Flow Diameter 5/16 in
- Body Size 1/4 in
Product Details
- CFM 80.8 CFM
- Connection Force 86 N
- Temperature Range -4 +212 °F
- Interchange Euro High Flow (1/4)
- Brand Cejn
- Connection Configuration 1/4 Male NPT
- PSI 232 psi
- Series 320
- Material Hardened Zinc Plated Steel
- Style Eurostandard 1/4" Body Size Interchange
- Max Operating PSI 232 psi
- Manufacturers Part Number 10-320-5452
- Min Burst Pressure 2030 psi
- Respirator Connection Type 1/4 Male NPT
Compliance & Certifications
- Certifications Euro High Flow (1/4)
There are no questions for this product.
