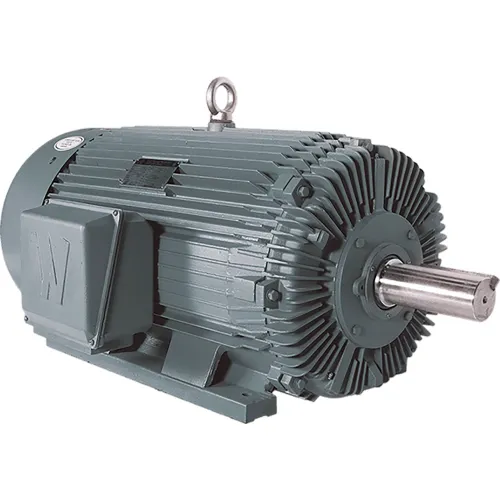

Premium Efficient Severe Duty Motor, 250 HP, 1200 RPM, 460V, 449T Frame, Ball Bearing on Drive-End

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.

WorldWide Electric offers Premium Efficiency, Severe Duty motors that are reliable, high-performance motors that are well-equipped to power anything from pumps, fans, compressors, blowers, and hydraulic power units to crushing, hammer mill, and aggregate processing equipment.

Totally Enclosed Fan Cooled (TEFC) Enclosure

IP55 Protection

1.25 SF (1-200 HP)

1.15 SF (250-500 HP)

Class F Insulation

Premium Efficiency

Inverter Duty, 10:1 CT / 20:1 VT at 1.0 SF (1-400 HP)

Inverter Ready, 5:1 CT / 6:1 VT at 1.0 SF (450-500 HP)

Class 1, Division 2, Groups A, B, C, D (1-400 HP)

Suitable for 50 Hz Operation with 1.0 SF
