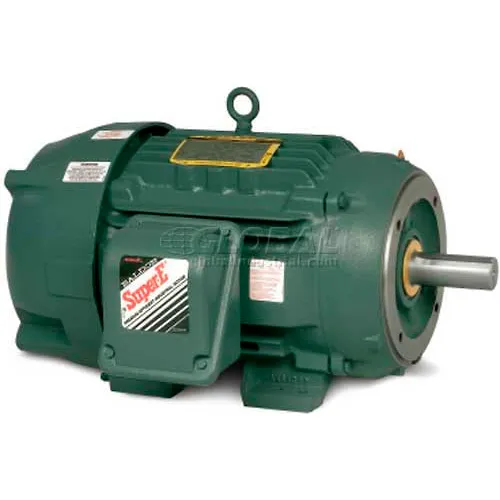

Baldor-Reliance Severe Duty Motor, CECP83661T-4, 3 PH, 3 HP, 460 V, 1755 RPM, TEFC, 182TC Frame

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, CECP83661T-4, 3 PH, 3 HP, 460 V, 1755 RPM, TEFC, 182TC Frame

Item #: WBB909271

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,584.00 up to 36% OFF

Price: $1,651.00

$275.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Baldor-Reliance Severe Duty Motor, CECP3581T, 3 PH, 1 HP, 208-230/460 V, 1765 RPM, TEFC, 143TC Frame

Baldor-Reliance Severe Duty Motor, CECP3581T, 3 PH, 1 HP, 208-230/460 V, 1765 RPM, TEFC, 143TC Frame

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Baldor-Reliance Severe Duty Motor, CECP83661T-4, 3 PH, 3 HP, 460 V, 1755 RPM, TEFC, 182TC Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Super-E® Premium efficient windings
  • 460 Volt
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant ISR® (Inverter Spike Resistant®) copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • 5 year warranty
Application(s)
  • Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

Weights & Dimensions

  • Dimension C 16.69 in
  • Opposite End Bearing Size 6206

Product Details

  • Power Factor 77
  • Bearing Drive End 6206
  • RPM 1755 rpm
  • Type Severe Duty Motor
  • Grease POLYREX EM
  • Ambient Temperature 40 °C
  • KVA Code J
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 460 V
  • Frame 182TC
  • Service Factor 1.15
  • Horsepower 3 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure TEFC
  • Full Load Efficiency 87.5/89.5
  • Brand Baldor-Reliance
  • Full Load Amps 4.1 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1755 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number CECP83661T-4

Compliance & Certifications

  • DOE Code 010A
