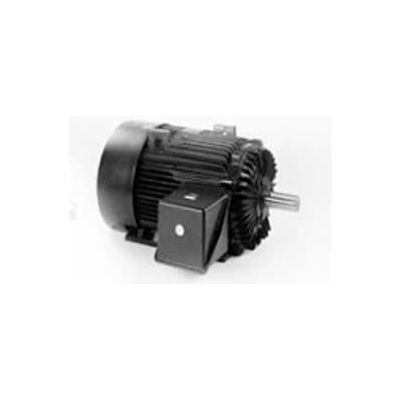

Marathon Motors Severe Duty Motor, E465, 182TTTS6578, 1.5HP, 230/460V, 1200RPM, 3PH, 182T FR, TENV

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E465, 182TTTS6578, 1.5HP, 230/460V, 1200RPM, 3PH, 182T FR, TENV

Item #: WBB869506

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $560.00

$93.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Severe Duty Motor, E465, 182TTTS6578, 1.5HP, 230/460V, 1200RPM, 3PH, 182T FR, TENV

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

  • HORSEPOWER 1 1/2
  • ENCLOSURE TENV
  • FRAME 182T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1200
  • RPM 1200
  • PHASE 3
  • VOLTAGE 230/460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6205
  • WEIGHT 100
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E465
  • RPM RANGE 1101-1200
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 20:1
  • FL AMPS 4.4/2.2
  • OPPOSITE END BEARING SIZE 6205
  • DRIVE END BEARING SIZE 6206
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6206
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 87.5
  • KVA-CODE L
  • is_motor Yes
  • 60 HERTZ kW 1.12
  • 60 HERTZ RPMS 1200
  • MODEL NUMBER 182TTTS6578
