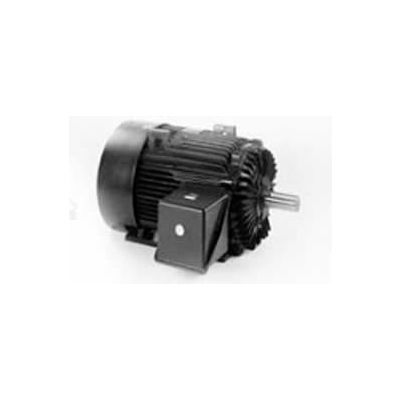

Actual product may differ from image shown
Price: $1,185.00
$197.50/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Marathon Motors Severe Duty Motor, E476, 213TTFS6531, 7.5HP, 230/460V, 1800RPM, 3PH, 213T FR, TENV
Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.
Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.
Weights & Dimensions
- Opposite End Bearing Size 6206
- Weight 222 lbs
- Drive End Bearing Size 6307
Product Details
- 60 Hertz kW 5.60 kW
- Mounting Location Rigid
- Bearing Drive End 6307
- Assembly Required F1 (F2 Modification Available)
- RPM 1800 rpm
- Hazardous Location DIVISION 2 T2B
- Ambient Temperature 40 °C
- KVA Code H
- IP Code 54
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 230/460 V
- Frame 213T
- Inverter Speed Range Constant 20:1
- Service Factor 1.15
- Horsepower 7-1/2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Enclosure TENV
- Phase 3
- Orientation Horizontal
- 60 Hertz RPM 1800 rpm
- Starting Type Line or Inverter
- Full Load Efficiency 91
- Brand Marathon Motors
- Full Load Amps 19.2/9.6 FLA
- Motor RPM 60 Hertz 1800 rpm
- Manufacturers Part Number E476
Compliance & Certifications
- CE Approved Y
- NEMA Design B
- CSA Certified Y
- UL Recognized Construction
