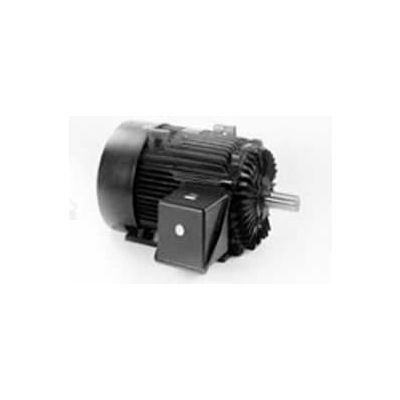

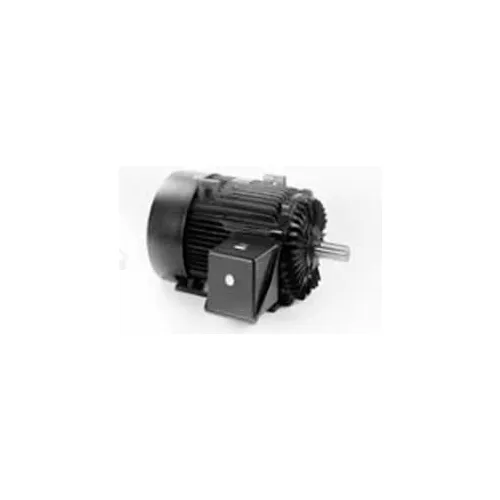

Marathon Motors Severe Duty Motor, E618, 213TTFS6526, 7.5HP, 460V, 1800RPM, 3PH, 213T FR, TEFC

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E618, 213TTFS6526, 7.5HP, 460V, 1800RPM, 3PH, 213T FR, TEFC

Item #: WBB869633

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,185.00

$197.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Severe Duty Motor, E476, 213TTFS6531, 7.5HP, 230/460V, 1800RPM, 3PH, 213T FR, TENV

Marathon Motors Severe Duty Motor, E476, 213TTFS6531, 7.5HP, 230/460V, 1800RPM, 3PH, 213T FR, TENV

Baldor-Reliance Severe Duty Motor, CECP83661T-4, 3 PH, 3 HP, 460 V, 1755 RPM, TEFC, 182TC Frame

Baldor-Reliance Severe Duty Motor, CECP83661T-4, 3 PH, 3 HP, 460 V, 1755 RPM, TEFC, 182TC Frame

Baldor-Reliance Severe Duty Motor, ECP84406T-5, 3 PH, 150 HP, 575 V, 1785 RPM, TEFC, 445T Frame

Baldor-Reliance Severe Duty Motor, ECP84406T-5, 3 PH, 150 HP, 575 V, 1785 RPM, TEFC, 445T Frame

Free Shipping

Baldor-Reliance Severe Duty Motor, ECP844252T-5, 3 PH, 250 HP, 575 V, 3570 RPM, TEFC, 449TS Frame

Baldor-Reliance Severe Duty Motor, ECP844252T-5, 3 PH, 250 HP, 575 V, 3570 RPM, TEFC, 449TS Frame

Free Shipping

Marathon Motors Severe Duty Motor, E618, 213TTFS6526, 7.5HP, 460V, 1800RPM, 3PH, 213T FR, TEFC

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

Weights & Dimensions

  • Opposite End Bearing Size 6206
  • Weight 243 lbs
  • Drive End Bearing Size 6307

Product Details

  • 60 Hertz kW 5.6 kW
  • Mounting Location Rigid
  • Bearing Drive End 6307
  • Assembly Required F1 (F2 Modification Available)
  • RPM 1800 rpm
  • Hazardous Location DIVISION 2 T2B
  • Ambient Temperature 40 °C
  • KVA Code H
  • IP Code 54
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 460 V
  • Frame 213T
  • Inverter Speed Range Constant 20:1
  • Service Factor 1.15
  • Horsepower 7-1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure TEFC
  • Phase 3
  • Orientation Horizontal
  • 60 Hertz RPM 1800 rpm
  • Starting Type Line or Inverter
  • Full Load Efficiency 91.7
  • Brand Marathon Motors
  • Full Load Amps 9.6 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Manufacturers Part Number E618

Compliance & Certifications

  • CE Approved Y
  • NEMA Design B
  • CSA Certified Y
  • UL Recognized Construction
