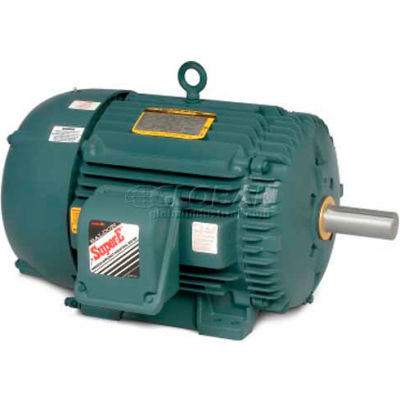

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
- Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
- Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
- Inpro Seal® on fan and drive end shaft extensions
- 2-part yellow epoxy oxide primer (inside & outside)
- Gray epoxy paint and corrosion resistant hardware
- Reduced noise, vibration and mechanical tolerances
- Final test and vibration results shipped with motor
- Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
Weights & Dimensions
- Dimension C 30.53 in
- Opposite End Bearing Size 6312
Product Details
- Power Factor 80
- Bearing Drive End 6312
- RPM 1180 rpm
- Type Severe Duty Motor
- Grease POLYREX EM
- Ambient Temperature 40 °C
- KVA Code G
- Insulation Class F
- RPM Range 1101-1200 rpm
- Voltage 460 V
- Frame 324T
- Service Factor 1.15
- Efficiency 2 91.7
- Horsepower 25 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Phase 3
- Enclosure TEFC
- Full Load Efficiency 93
- Brand Baldor-Reliance
- Full Load Amps 31.6 FLA
- Design Code B
- Motor RPM 60 Hertz 1180 rpm
- Hertz 60 Hz
- Manufacturers Part Number ECP84111T-4
Compliance & Certifications
- DOE Code 010A
