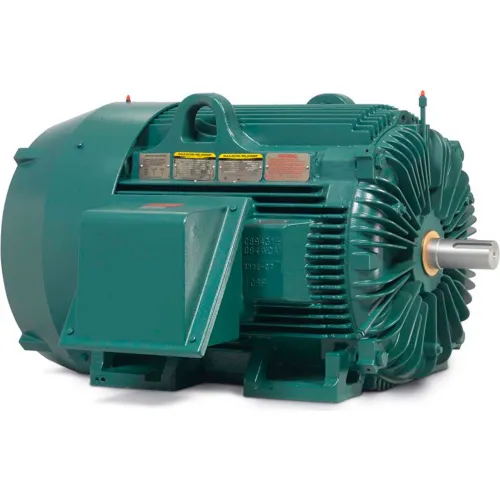

Baldor-Reliance Severe Duty Motor, ECP844252T-5, 3 PH, 250 HP, 575 V, 3570 RPM, TEFC, 449TS Frame

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, ECP844252T-5, 3 PH, 250 HP, 575 V, 3570 RPM, TEFC, 449TS Frame

Item #: WBB909249

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

$69,026.00 up to 36% OFF

Price: $44,085.00

$7,347.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP3771T-4, 10HP, 3500RPM, 3PH, 60HZ, 215T, 0744M, TEFC, F1

Baldor-Reliance Motor ECP3771T-4, 10HP, 3500RPM, 3PH, 60HZ, 215T, 0744M, TEFC, F1

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Severe Duty Motor, ECP844252T-5, 3 PH, 250 HP, 575 V, 3570 RPM, TEFC, 449TS Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Application(s)
  • Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

Weights & Dimensions

  • Dimension C 49.48 in
  • Opposite End Bearing Size 6313

Product Details

  • Power Factor 91
  • Bearing Drive End 6313
  • RPM 3570 rpm
  • Type Severe Duty Motor
  • Grease POLYREX EM
  • KVA Code G
  • Efficiency 1 96.6
  • Insulation Class F
  • RPM Range 3001-3600 rpm
  • Voltage 575 V
  • Frame 449TS
  • Service Factor 1.15
  • Efficiency 2 95.8
  • Horsepower 250 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure TEFC
  • Full Load Efficiency 96.2
  • Brand Baldor-Reliance
  • Full Load Amps 212 FLA
  • Design Code B
  • Motor RPM 60 Hertz 3570 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number ECP844252T-5
