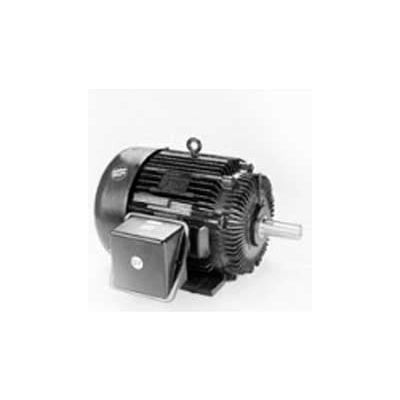

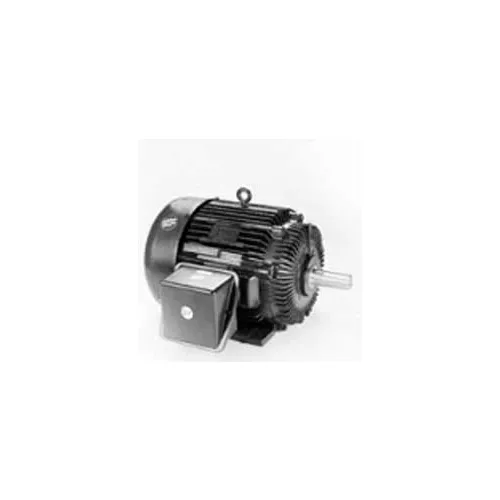

Marathon Motors Severe Duty Motor, W611, 445TSHFN9026, 150HP, 575V, 1800RPM, 3PH, 445TS FR, TEFC

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, W611, 445TSHFN9026, 150HP, 575V, 1800RPM, 3PH, 445TS FR, TEFC

Item #: WBB870095

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $10,049.00

$1,674.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Severe Duty Motor, W611, 445TSHFN9026, 150HP, 575V, 1800RPM, 3PH, 445TS FR, TEFC

Marathon's 1800 Rpm, line of 575 Volts, Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 200 HP.

  • HORSEPOWER 150
  • ENCLOSURE TEFC
  • FRAME 445TS
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 575
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 313
  • WEIGHT 2058
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER W611
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 10:1
  • FL AMPS 172
  • OPPOSITE END BEARING SIZE 313
  • DRIVE END BEARING SIZE 313
  • ASSEMBLY F1 (F2 Modification Available)
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 313
  • IP CODE 56
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 95.8
  • is_motor Yes
  • KVA-CODE G
  • 60 HERTZ kW 112
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 445TSHFN9026
